Transmission, Transporting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hook And Support Tool:3311 with Hook And Support Tool - Bolt:3311/1
Shop Crane:VAS6100

Procedure

Transmission removed.

CAUTION:

Transmission components could be damaged if they are not set down correctly.

Do not place the transmission on the ATF cooler or oil pan.

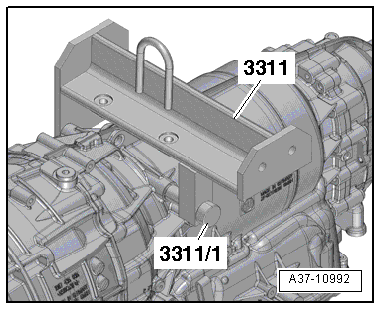

Fig 1: Identifying 3311

Courtesy of AUDI OF AMERICA, LLC

WARNING:

An accident could result if the transmission is not secured correctly.

Exchange the bolt on the Hook And Support Tool:3311 for a new, longer Hook And Support Tool - Bolt:3311/1 .
Only this way can the transmission be secured.

-- Secure the transmission on the Hook And Support Tool:3311 (use new longer Hook And Support Tool - Bolt:3311/1 ).

-- Lift and transport the transmission with the Shop Crane:VAS6100 .
