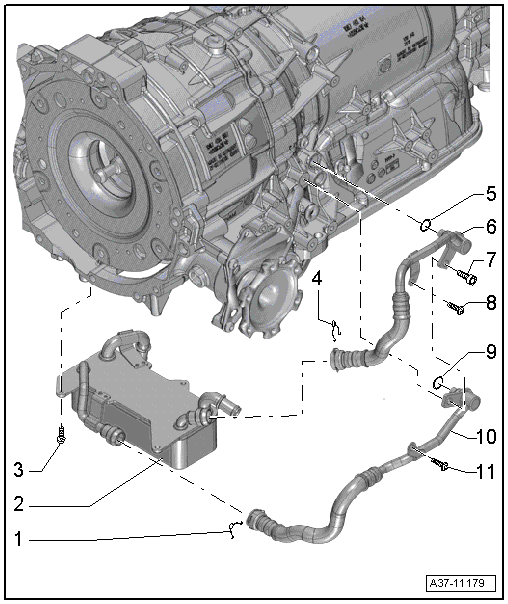

ATF Cooler, ATF Line
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Replace bent or stretched circlips.
- ATF Cooler
- Removing and installing. Refer to ATF COOLER, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Clip
- Replace bent or stretched circlips.
- O-Ring
- Always replace
- Coat with ATF before installing
- ATF Pipe
- Cleaning. Refer to Clean .
- Install all the way by hand with a new O-ring.
- Depending on the version made of plastic
- Bolt
- 20 Nm
- First insert the ATF pipes with new O-rings by hand as far as the stop
- The retaining tab on the lower ATF pipe must lie on the transmission threads
- The retaining tab on the upper ATF pipe must touch the lower one.
- Bolt
- 8 Nm
- O-Ring
- Always replace
- Coat with ATF before installing
- ATF Pipe
- Cleaning. Refer to Clean .
- Install all the way by hand with a new O-ring.
- Depending on the version made of plastic
- Bolt
- 8 Nm
Assembly of the oil line on the ATF cooler from approximately MY 2014
