Component Location Overview - Navigation System, Japan, From My 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

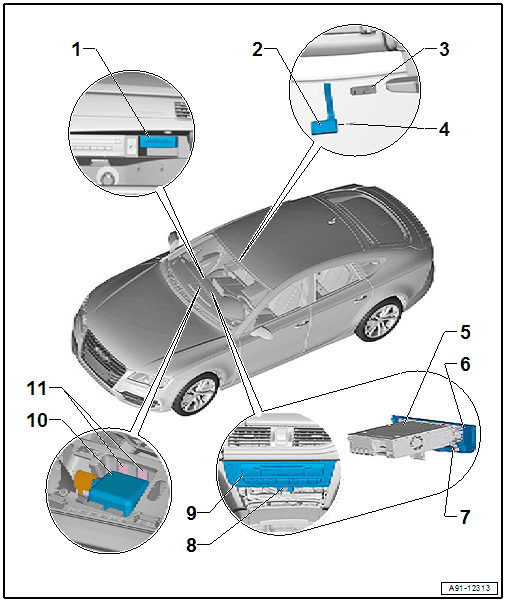

- Chip Card Reader Control Module -J676-
- Connector Assignment. Refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENT, FROM MY 2015 .
- Removing and installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
- Traffic Data Antenna -R173-
- Removing and installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
- Bracket
- Glued to the windshield
- Safety piece
- Information Electronics Control Module 1 -J794-
- Trim
- Bolt
- Quantity: 4
- 1 Nm
- Bolt
- 3 Nm
- Information Electronics Control Module 1 -J794-
- Connector Assignment, Navigation plus 7UG. Refer to the Appropriate Wiring Diagram.
- Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Close Range Communication Antenna -R269-
- Removing and installing. Refer to CLOSE RANGE COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
- Catch
