Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENT, FROM MY 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

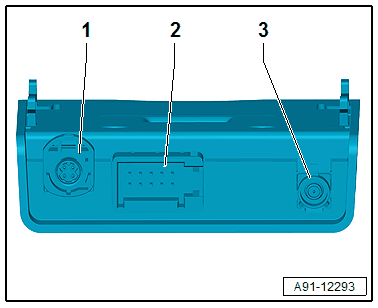

- 5-Pin Connector -T5br- to the front External Audio Source Connection -R199-, USB quantity: 2, AUX IN
- 10-Pin Connector - T10bk-
- Connection from the Close Range Communication Antenna -R269-

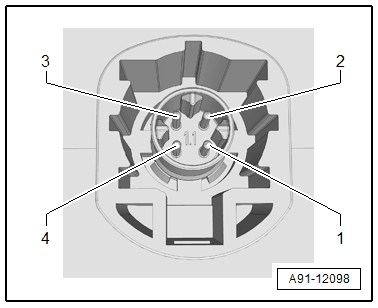

All pins are connected to the External Audio Source Connection -R199-.
- Data (+)
- USB, +5 V
- Data (-)
- USB, Ground
- Ground Shielding
- Supply (+) Traffic Data Antenna -R173-
- Supply (-) Traffic Data Antenna -R173-
- VICS data wire to the Traffic Data Antenna -R173-
- VICS data wire from the Traffic Data Antenna -R173-
- Not Assigned
- Not Assigned
- Diagnosis 1 Traffic Data Antenna -R173-
- Diagnosis 2 Traffic Data Antenna -R173-
- Terminal 30
- Terminal 31
