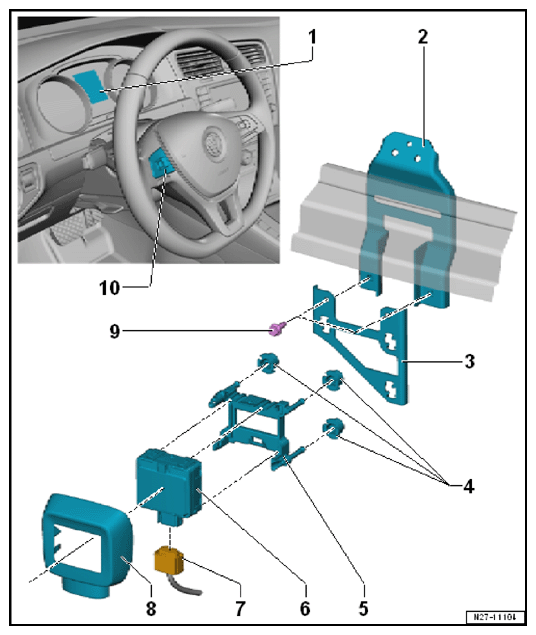

3.1 Overview - Adaptive Cruise Control

Instrument Cluster - KX2-
- With Instrument Cluster Control Module - J285-
- Removing and installing. Refer to 1.2 Instrument Cluster KX2 (Removing and Installing).
Front Bumper Carrier
Retaining Plate
- Removing and installing. Refer to 3.2.2 Adaptive Cruise Control Module, Removing and Installing, from Retaining Plate .
Quick Release Fastener
- Replace
- Quantity: 3
Adapter Frame
- Serves as the mount for the Distance Regulation Control Module - J428-
- With Distance Regulation Control Module - J428- adjusting screw
- Measure the adjustment dimension and if necessary adjust. Refer to Figure
Distance Regulation Control Module - J428-
- Removing and installing. Refer to 3.2.1 Adaptive Cruise Control Module, Removing And Installing, With Retaining Plate
- Calibrating. Refer to 3.3 Adaptive Cruise Control, Calibrating .
Connector
Radar Sensor Trim
Bolt
- 8 Nm.
- Quantity: 2
Adaptive Cruise Control Button - E357-
- Is integrated in the multifunction steering wheel.
- Removing and Installing. Refer to Communication (Multifunction Steering Wheel; Right/Left Multifunction Buttons On Steering Wheel -E441 -/-E440 -, Removing and Installing).
