Special Tools

Special Tools And Workshop Equipment Required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

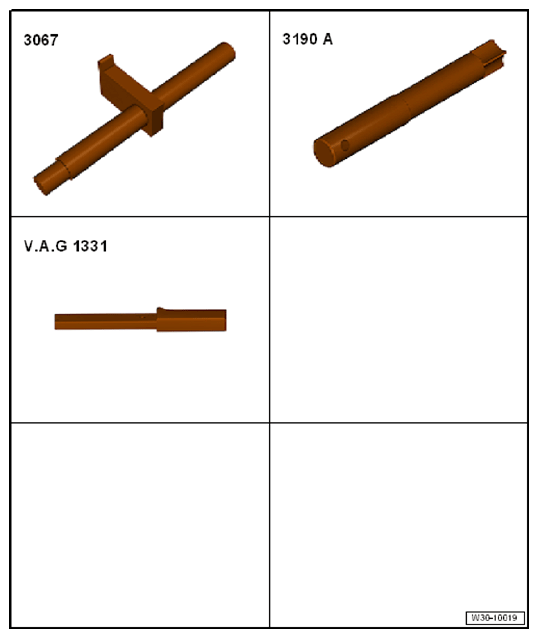

• Flywheel Retainer - 3067-
• Alignment Tool - Clutch Plate - 3190A-
• Torque Wrench 1331 5-50 Nm  - VAG1331-
• Grease for Clutch Disc Shaft Splines
• Clutch Pedal Pliers - T10005-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Over-Center Spring Assembly Tool - T10178-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Sealing Tool - T10249-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Brake Charger/Bleeder Unit - VAG1869-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Brake Charger/Bleeder Unit - VAS5234- or

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clip Pliers - VAS6362-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clamps - Up To 25mm - 3094-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
