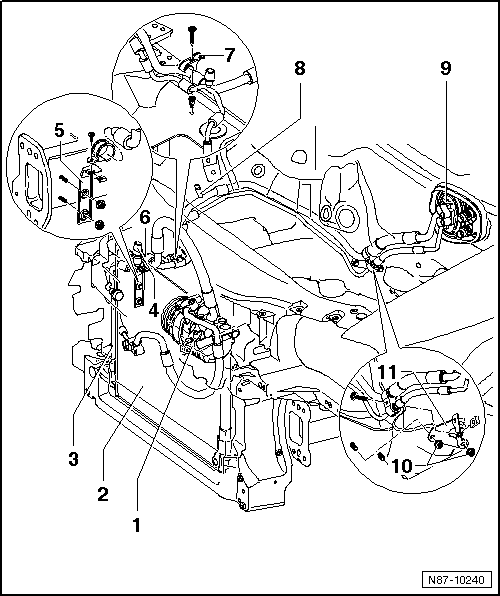

Refrigerant Circuit Components Overview
WARNING: This page is about a different car, the 2011 Volkswagen CC, 2010 Volkswagen CC, and 2009 Volkswagen CC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
There is a danger of ice-up.
Refrigerant leaks out if refrigerant circuit is not discharged.
Refrigerant must be extracted before opening the refrigerant circuit. If refrigerant circuit is not opened within 10 minutes of extraction, pressure may form in refrigerant circuit due to evaporation. Extract refrigerant once more.
- A/C Compressor
- Manufacturer Sanden, Identification PXE16
- Manufacturer Zexel, Identification DSC17E
- Manufacturer Denso, Identification 6SEU14
- Manufacturer Delphi, Identification 6CVC140
- Pay attention to notes for installing A/C compressor. Refer to A/C COMPRESSOR, INSTALLATION INFORMATION .
- Removing and installing, refer to A/C COMPRESSOR .
- Condenser
- Removing and installing, refer to CONDENSER .
- Fluid Reservoir With Dryer Cartridge NOTE:
Under certain conditions, the dryer cartridge should no longer be replaced each time the refrigerant circuit is opened. Refer to: RESERVOIR/FLUID RESERVOIR REPLACEMENT CONDITIONS .
The fluid reservoir with dryer cartridge is mounted on the right or left side on the condenser depending on the engine type.
- Removing and installing, refer to Passat or Passat CC FLUID RESERVOIR DRYER CARTRIDGE .
- High Pressure Sensor -G65-
- Removing, refer to HIGH PRESSURE SENSOR -G65- .
- Bracket
- Evacuating and Charging Valve
- High pressure side.
- Environmentally hazardous draining of refrigerant is an offense punishable by law.
- Removing, refer to EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDES .
- Capacities, refer to SPECIFICATIONS .
- Retainer
- Evacuating and Charging Valve
- Low pressure side.
- Environmentally hazardous draining of refrigerant is an offense punishable by law.
- Removing, refer to EVACUATING AND CHARGING VALVE, LOW AND HIGH PRESSURE SIDES .
- Capacities, refer to SPECIFICATIONS .
- Expansion Valve
- Removal and function, refer to EXPANSION VALVE .
- Hex Head Nut
- 20 Nm
- Bracket
