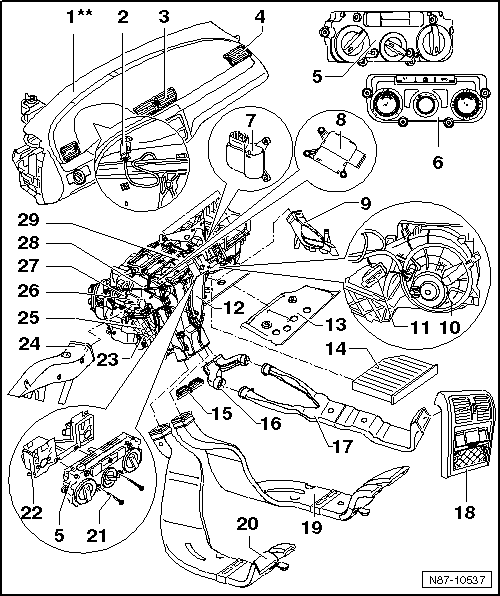

Climatic Heating And A/C System Overview
WARNING: This page is about a different car, the 2011 Volkswagen CC, 2010 Volkswagen CC, and 2009 Volkswagen CC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Disconnect the battery before removing the components marked with **. Refer to [For transmission(s) 02E, 02Q, 09M] Removal and Installation .
A data plate indicates the refrigerant used and capacity.
- Dash Panel **
- Center Outlet Temperature Sensor -G191-
- Removing and installing, refer to CENTER OUTLET TEMPERATURE SENSOR -G191- .
- Center Vents
- Removing and installing, refer to CENTER VENT .
- Right Side Vent
- Controls For Heating and A/C System, Climatic
- Passat from MY 06.
- With Fresh air/recirculating door switch -E159-.
- Also with Immediate heating button -E537- in vehicles with an auxiliary heater.
- With Rear window defogger switch -E230-.
- With Fresh air blower switch -E9-.
- On vehicles with heated seals also with Heated driver seat adjuster -E94- and Heated front passenger seat adjuster -E95-.
- With A/C control module -J301-.
- Removing and installing, refer to HEATING AND A/C SYSTEM CONTROLS .
- Controls For Heating and A/C System, Climatic
- Passat CC from MY 09.
- With Fresh air/recirculating door switch -E159-.
- With Rear window defogger switch -E230-.
- With Fresh air blower switch -E9-.
- On vehicles with heated seats also with Heated driver seat adjuster -E94- and Heated front passenger seat adjuster -E95-.
- Removing and installing, refer to HEATING AND A/C SYSTEM CONTROLS .
- Fresh/Recirculating Air Door Motor -V154-
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to FRESH/RECIRCULATING AIR DOOR MOTOR -V154- .
- Replacing: perform Basic Setting using Vehicle Diagnostic, Testing and Information System -VAS 5051B-. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
- Air Distribution Door Motor -V428- with Air Distribution Door Motor Position Sensor -G645-
- Passat CC from MY 09.
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to AIR DISTRIBUTION DOOR MOTOR -V428- .
- Replacing: perform Basic Setting using Vehicle Diagnostic, Testing and Information System -VAS 5051B-. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
- Right Footwell Vent
- Removing and installing, refer to RIGHT FOOTWELL VENT .
- Fresh Air Blower -V2-
- Removing and installing, refer to FRESH AIR BLOWER -V2- .
- Fresh Air Blower Series Resistor With Fuse -N24-
- Removing and installing, refer to FRESH AIR BLOWER SERIES RESISTOR WITH FUSE -N24- .
- Evaporator Vent Temperature Sensor -G263-
- Removing and installing, refer to EVAPORATOR VENT TEMPERATURE SENSOR -G263- .
- Heating Unit Partition
- Removing, refer to PASSENGER COMPARTMENT HEATING OVERVIEW => Removing Heater Partition .
- Dust and Pollen Filter
- Removing and installing, refer to DUST AND POLLEN FILTER .
- Cap
- Only in vehicles without air guide to vent installed in center console at rear.
- Connection
- For air duct, rear vent.
- To remove, the center console must be removed. Refer to Removal and Installation .
- Air Duct To Rear Vent
- Removing and installing, refer to REAR VENT AIR DUCT .
- Rear Vent
- Removing and installing, refer to REAR VENT .
- Rear Channel For Right Footwell
- Removing and installing, refer to REAR CHANNEL, FOOTWELL .
- Rear Channel For Left Footwell
- Removing and installing, refer to REAR CHANNEL, FOOTWELL .
- Screw
- Quantity: 8
- Adapter For Controls
- Passat from MY 06.
- Auxiliary Heater Heating Element -Z35-
- Not applicable to the US or Canada
- Left Footwell Vent
- Removing and installing, refer to LEFT FOOTWELL VENT .
- Heat Exchanger
- Removing and installing, refer to HEAT EXCHANGER .
- Footwell Outlet Temperature Sensor -G192-
- Removing and installing, refer to FOOTWELL OUTLET TEMPERATURE SENSOR -G192- .
- Temperature Regulator Flap Motor -V68- with Temperature Regulator Flap Motor Position Sensor -G92-
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to TEMPERATURE REGULATOR DOOR MOTOR -V68- .
- Replacing: perform Basic Setting using Vehicle Diagnostic, Testing and Information System -VAS 5051B-. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
- Flexible Shaft
- Removing and installing, refer to FLEXIBLE AIR DISTRIBUTION SHAFT .
- Passat from MY 06.
- Heating and A/C Unit
- Removing and installing, refer to HEATING AND A/C UNIT .
- Disassembling and assembling, refer to HEATING AND A/C UNIT, CLIMATIC .
