Heating And A/C Unit, Climatic
WARNING: This page is about a different car, the 2011 Volkswagen CC, 2010 Volkswagen CC, and 2009 Volkswagen CC. However, it is still accessible from the selected car via links, so may be relevant.

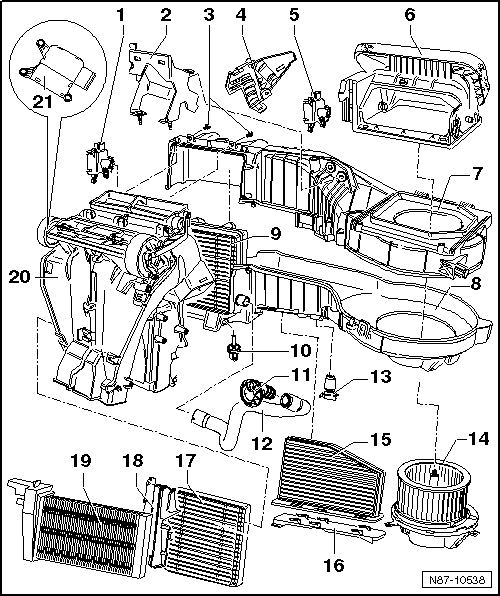

- Temperature Regulator Door Motor -V68-
- Removing and installing, refer to TEMPERATURE REGULATOR DOOR MOTOR -V68- .
- Bracket
- Screws
- Bolts must be unscrewed to separate air distributor and evaporator housing.
- Cover
- Fresh/Recirculating Air Door Motor -V154-
- Removing and installing, refer to FRESH/RECIRCULATING AIR DOOR MOTOR -V154- .
- Housing For Air Entry
- With air recirculation door.
- Upper Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Lower Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Evaporator
- Removing and installing, refer to EVAPORATOR .
- Evaporator Vent Temperature Sensor -G263-
- Removing and installing, refer to EVAPORATOR VENT TEMPERATURE SENSOR -G263- .
- Connection For Glove Compartment Cooling
- Coolant Hose For Glove Compartment Cooling
- Fresh Air Blower Series Resistor With Fuse -N24-
- Removing and installing, refer to FRESH AIR BLOWER SERIES RESISTOR WITH FUSE -N24- .
- Fresh Air Blower -V2-
- Removing and installing, refer to FRESH AIR BLOWER -V2- .
- Dust And Pollen Filter
- Removing and installing, refer to DUST AND POLLEN FILTER .
- Cover
- For dust and pollen filter.
- Heat Exchanger
- Removing and installing, refer to HEAT EXCHANGER .
- Heater Core Trim
- Auxiliary Heater Heating Element -Z35-
- Not applicable to the US or Canada
- Junction Box
- Air Distribution Door Motor -V428- with Air Distribution Door Motor Position Sensor -G645-
- Passat CC from MY 09.
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to AIR DISTRIBUTION DOOR MOTOR -V428- .
- Replacing: perform Basic Setting using Vehicle Diagnostic, Testing and Information System -VAS 5051B-. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
