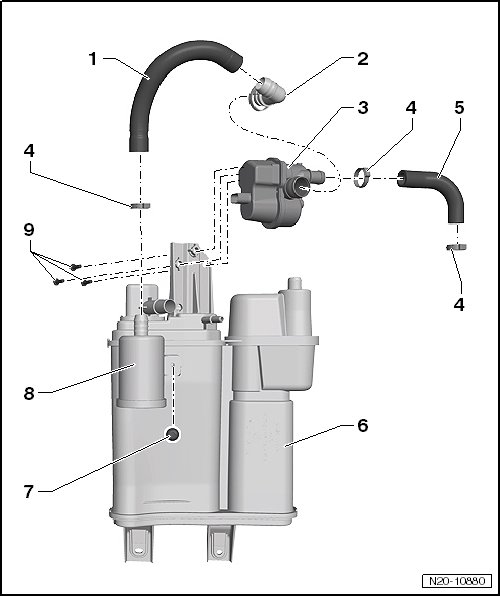

EVAP System Component Overview

EVAP System Component Overview






1 Connecting Hose

• From the air filter to the leak detection pump.

• Call-outs 1, 2 and 8 are available as replacement parts.

2 Connecting Hose Connection

• Coupling, disconnecting. Refer to => [ Coupling, Disconnecting ] Service and Repair.

• Call-outs 1, 2 and 8 are available as replacement parts.

3 Leak Detection Pump (V144)

• Installed location: In the right rear wheel housing, under the liner.

• Removing and installing, refer to => [ Leak Detection Pump V144 ] Service and Repair.

4 Hose Clamp

5 Connecting Hose

• From the leak detection pump to the EVAP canister.

6 EVAP Canister

• Installed location: In the right rear wheel housing, under the liner.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

7 Nut

• 1.8 Nm

8 Air Filter with Connecting Hose

• Complete with the connecting hose and connection - items 1 and 2 -.

9 Screw

• 1.8 Nm
