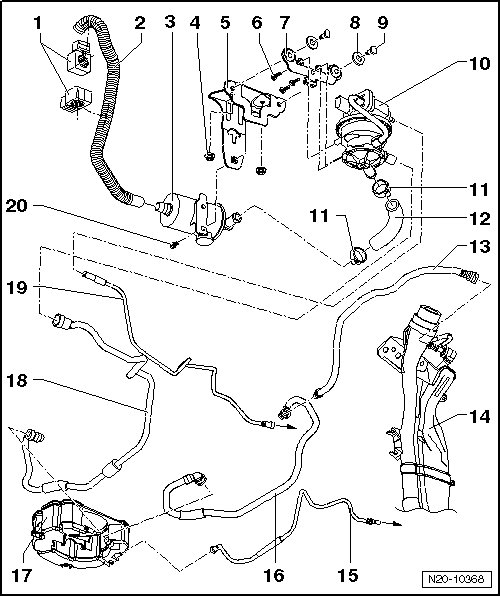

EVAP System Overview

EVAP System Overview






1 Hose Bracket

2 Vent Line

• To remove and install, remove the bumper.

3 Air Filter Housing

• For the leak detection pump.

4 Nut

• 6 Nm

5 Bracket

• For the leak detection pump.

6 Bolt

• 3 Nm

7 Retaining Plate

8 Rubber Bushing

9 Bolt

• 8 Nm

10 Leak Detection Pump (V144)

• Installed location: Behind the right rear wheel housing liner.

• Removing and installing, refer to => [ Leak Detection Pump V144 ] Service and Repair.

• Checking the fuel system for leaks. Refer to => [ Fuel System, Checking for Leaks ] Fuel System, Checking for Leaks.

11 Clamp

12 Connecting Hose

13 Vent Line

• Behind the right rear wheel housing liner.

14 Fuel Tank

15 Vent Line

• To the EVAP canister purge regulator valve 1.

• To remove, press the release button.

16 Vent Line

• On the underbody.

17 EVAP Canister

• Installed location: On the bottom of the spare tire wheel well.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

18 Connecting Line

• EVAP canister to leak detection pump.

19 Vacuum Line

• To the intake manifold.

20 Bolt

• 2 Nm
