Air Injection: Service and Repair

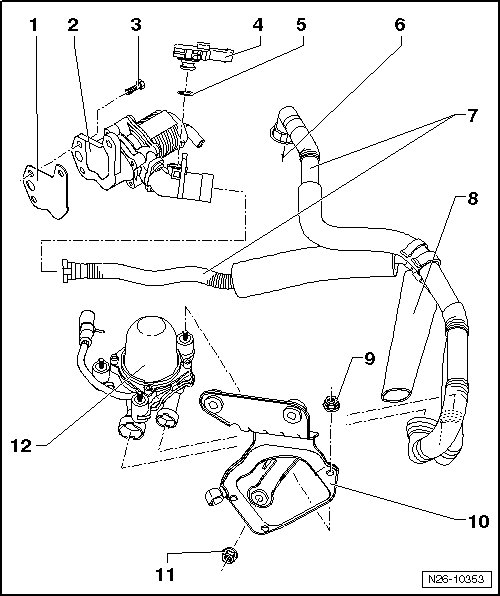

Secondary Air Injection System Overview






1 Gasket

• Always replace.

2 Secondary Air Injection Solenoid Valve (N112)

• Removing and installing, refer to => [ Secondary Air Injection Solenoid Valve N112 ] Service and Repair.

3 Bolt

• 9 Nm

4 Secondary Air Injection Sensor 1 (G609)

5 Seal

• Always replace.

6 to the Air Filter Housing

7 Secondary Air Injection Connecting Hoses

8 Routing Aid for the Air Filter Housing Drain Hose

9 Nut

• 9 Nm

10 Secondary Air Injection Pump Motor Bracket

11 Nut

• 25 Nm

12 Secondary Air Injection Pump Motor (V101)

• Removing and installing, refer to => [ Secondary Air Injection Pump Motor V101 ] Service and Repair.
