A/C Compressor Sub-Assembly Bracket, Engine Codes BGP And BGQ: Notes
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Torque Wrench V.A.G 1331/ (5 to 50 Nm)
NOTE:
The bracket for A/C compressor and ancillary parts can be removed and installed without opening the refrigerant circuit.
To remove the ribbed belt, refer to [For transmission(s) 0A4, 09G] [For engine(s) CBTA, CBUA] RIBBED BELT or refer to [For transmission(s) 02E, 02Q] [For engine(s) CJAA] RIBBED BELT

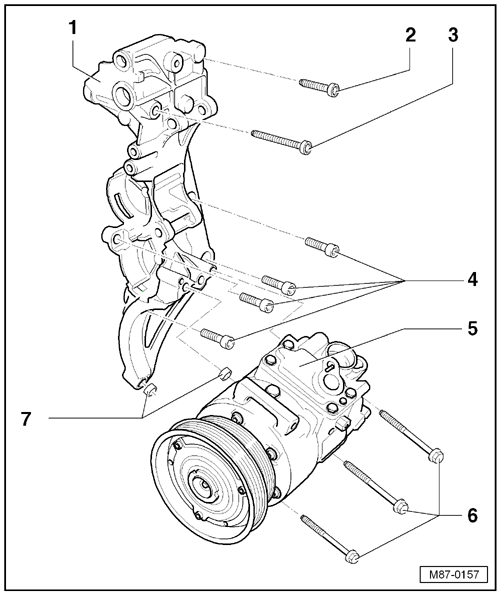

- Sub-assembly Bracket For The Generator And A/C Compressor
- Number on the auxiliary component bracket 07K 903 143 B
Removing
-- Loosen A/C compressor, unscrew hex-bolts -6-. Remove A/C compressor from auxiliary component bracket and secure to body with appropriate material (e.g. welding wire), refer to SECURING A/C COMPRESSOR TO BODY .
-- Remove the bolts -2, 3 and 4- and the auxiliary component bracket -1- from the cylinder block.
- M8 x 60 Internal Multi-Point Bolt
- 25 Nm
- M8 x 110 Internal Multi-Point Bolt
- 25 Nm
- M8 x 30 Hex Socket Head Bolts
- 25 Nm
- Quantity: 4
- A/C Compressor
- Removing and installing, refer to A/C COMPRESSOR .
- Hex Bolts M8x85
- 25 Nm
- Quantity: 3
- Dowel Sleeves
- Quantity: 2
- Make sure they fit correctly between the auxiliary component bracket and the A/C compressor.
