A/C Compressor Sub-Assembly Bracket, Engine Code BRM: Notes

Special tools and workshop equipment required

• Torque Wrench V.A.G 1331/ (5 to 50 Nm)

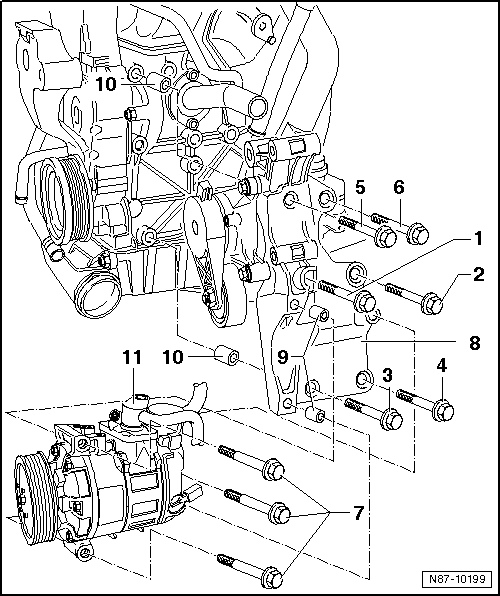

Fig 1: Identifying A/C Compressor And Bracket - 1.9L 4-Cylinder TDI-PD Engine, Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Hex Bolt M10 X 65
   • 50 Nm
2. Hex Bolt M10 X 45
   • 50 Nm
3. Hex Bolt M10 X 45
   • 50 Nm
4. Hex Bolt M10x45
   • 50 Nm
5. Hex Bolt M10 X 65
   • 50 Nm
6. Hex Bolt M10 X 65
   • 50 Nm
7. Hex Bolts M8 X 100
   • Quantity: 3
   • 25 Nm
8. Sub-assembly Bracket For The Generator and A/C Compressor
   • Number on the auxiliary component bracket 03G 903 143 A

   Removing

   -- Remove generator. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CBTA, CJAA, CBUA] Removal and Installation .

   -- Loosen A/C compressor, unscrew hex-bolts -7-. Remove A/C compressor from auxiliary component bracket and secure to body with appropriate material (e.g. welding wire), refer to SECURING A/C COMPRESSOR TO BODY .

   -- Unscrew bolts -1- to -6- and remove auxiliary component bracket from cylinder block.

   • Always observe tightening torque of mounting bolts:

   -- Tighten hex bolts, items -1-, -2-, -3-, -4-, -5- and -6- in succession.

9. Dowel Sleeves
   • Quantity: 2
   • Make sure they fit correctly between the auxiliary component bracket and the A/C compressor.
10. Dowel Sleeves
    • Quantity: 2
    • Make sure they fit correctly between the auxiliary component bracket and the cylinder block.
11. A/C Compressor
    • Removing and installing, refer to A/C COMPRESSOR .
