A/C Compressor Sub-Assembly Bracket, Engine Code BPY: Notes

Special tools and workshop equipment required

• Torque Wrench V.A.G 1331/ (5 to 50 Nm)

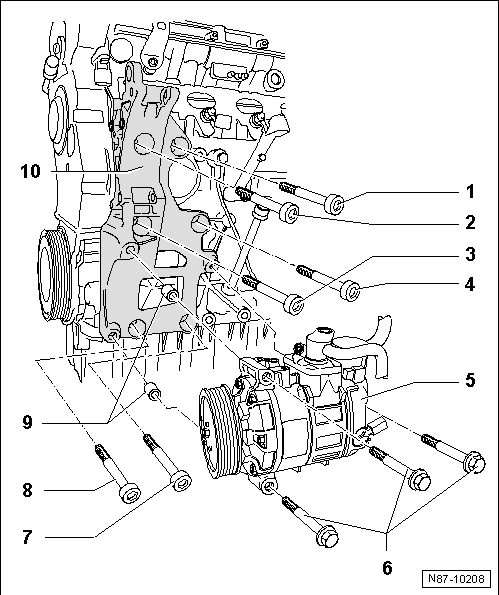

Fig 1: Identifying A/C Compressor And Bracket - 2.0L 4-Cylinder TFSI Engine Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. M10x45 Hex Collar Bolt
   • Fitting hole
   • 2.0L Turbo FSI engine: 40 Nm.
2. M10x45 hex collar bolt
   • 2.0L Turbo FSI engine: 40 Nm.
3. M10x45 hex collar bolt
   • 2.0L Turbo FSI engine: 40 Nm
4. M10x45 hex collar bolt
   • 2.0L Turbo FSI engine: 40 Nm
5. A/C Compressor
   • Removing and installing, refer to A/C COMPRESSOR .
6. Hex Bolts M8 X 100
   • 25 Nm
   • Quantity: 3
7. M10x45 Hex Collar Bolt
   • Fitting hole
   • 2.0L Turbo FSI engine: 40 Nm
8. M10x45 Hex Collar Bolt
   • 2.0L Turbo FSI engine: 40 Nm
9. Dowel Sleeves
   • Quantity: 2
   • Make sure they fit correctly between the auxiliary component bracket and the A/C compressor.
10. A/C Compressor Sub-Assembly Bracket

    Number on the auxiliary component bracket 06F 903 143 E/F

    Removing

    -- Remove generator. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CBTA, CJAA, CBUA] Removal and Installation .

    -- Loosen A/C compressor, unscrew hex-bolts -6-. Remove A/C compressor from auxiliary component bracket and secure to body with appropriate material (e.g. welding wire), refer to SECURING A/C COMPRESSOR TO BODY .

    -- Remove the bolts -1- through -4- and -7- and -8- and the auxiliary component bracket -10- from the cylinder block.

    Installing

    • Always observe tightening torque of mounting bolts:

    -- Tighten hex collar bolt item -1- (fitting hole), -7- (fitting hole), -4-, -8-, -3- and -2- in succession.
