Windshield Washer System Overview

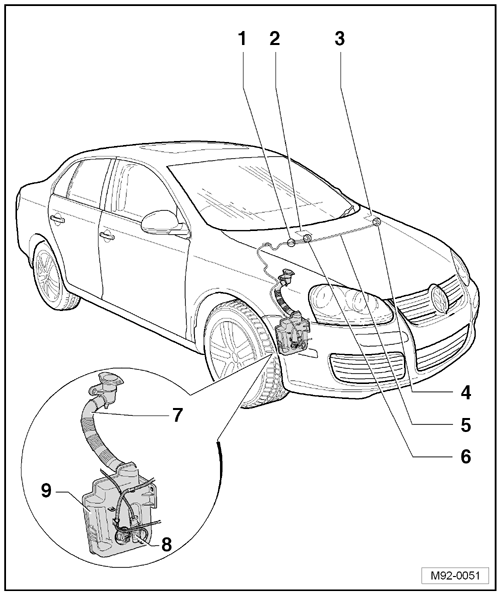

Fig 1: Identifying Windshield Washer System, Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Y-connection
   • Divides washer fluid line to the windshield washer spray nozzles.
2. Right Windshield Washer Spray Nozzle
   • Removal and installation, refer to WINDSHIELD WASHER SPRAY NOZZLES .
   • Adjusting, refer to WINDSHIELD WASHER SPRAY NOZZLES, ADJUSTING .
3. Left Windshield Washer Spray Nozzle
   • Removal and installation, refer to WINDSHIELD WASHER SPRAY NOZZLES .
   • Adjusting, refer to WINDSHIELD WASHER SPRAY NOZZLES, ADJUSTING .
4. Angle Coupling
   • Connection to the left windshield washer spray nozzle.
   • Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
5. Hose
   • Hose repair, refer to General Information .
6. Angle Coupling
   • Connection to the right windshield washer spray nozzle.
   • Overview of washer fluid hose couplings, refer to General Information .
7. Reservoir Filler Tube For Windshield Washer System and Headlamp Cleaning System
   • Removal and installation, refer to FILLER TUBE .
8. Windshield and Rear Window Washer Pump -V59-
   • Removal and installation, refer to WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
9. Windshield Washer System and Headlamp Washer System Washer Fluid Reservoir
   • Removal and installation, refer to RESERVOIR .

     - Windshield Washer Fluid Level Sensor -G33-

   • Removal and installation, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .

No Illustration

• Windshield and headlamp washer fluid reservoir to body: 8 Nm
