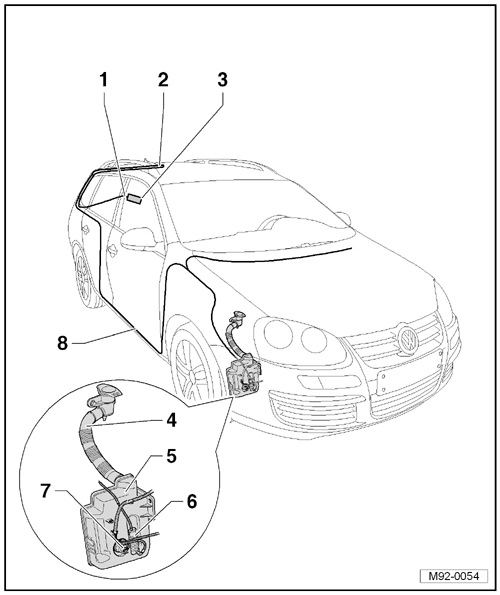

Rear Window Washer System Overview
WARNING: This page is about a different variant/trim than selected.
- Connecting Piece
- Connection to washer nozzle of rear window washer system.
- Overview of washer fluid hose couplings, refer to General Information .
- Connecting Piece
- Separating point between wiring harness of passenger compartment to wiring harness of rear lid.
- Overview of washer fluid hose couplings, refer to General Information .
- Washer Nozzle Of Rear Window Washer System
- Removal and installation, refer to REAR WINDOW SPRAY NOZZLE .
- Adjusting, refer to REAR WINDOW SPRAY NOZZLE, ADJUSTING .
- Windshield and Headlamp Washer Fluid Reservoir Filler Tube
- Removal and installation, refer to FILLER TUBE .
- Windshield Washer System and Headlamp Washer System Washer Fluid Reservoir
- Removal and installation, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
- Windshield and Rear Window Washer Pump -V59-
- Removal and installation, refer to WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
- Windshield Washer Fluid Level Sensor -G33-
- Removal and installation, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
- Hose
- Hose repair, refer to General Information .
