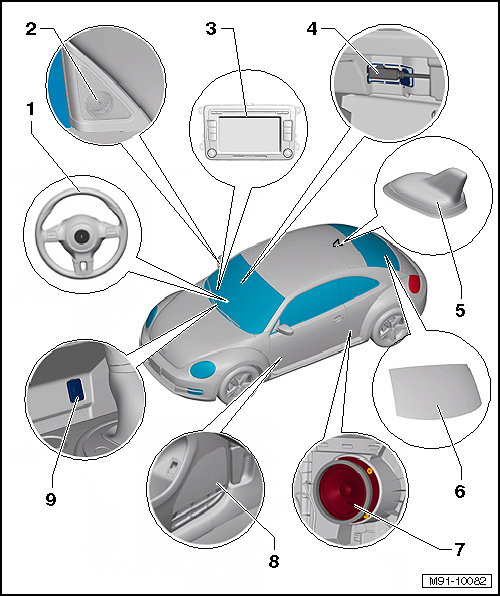

Navigation System Components, RNS 510
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Multifunction Steering Wheel
- Front Treble Speaker
- Inside the mirror triangle
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
- Radio/Navigation Display Unit Control Module -J503-
- Connector assignment. Refer to CONNECTOR ASSIGNMENTS, RNS 510 .
- Electronic Anti-Theft System. Refer to Electronic Anti-Theft Protection .
- Removing and installing. Refer to Radio/Navigation Display Unit Control Module -J503- .
- Multimedia System Control Module -J650-
- In the glove compartment
- Refer to OVERVIEW - CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES
- GPS Antenna -R50-
- Sedan: inside the roof antenna
- Convertible: on the front roof crossmember
- Antenna systems. Refer to OVERVIEW - ANTENNA SYSTEMS .
- Antenna -R11- /Radio Antenna 2 -R93-
- Sedan: inside the rear window
- Convertible: inside the windshield
- Antenna systems. Refer to OVERVIEW - ANTENNA SYSTEMS .
- Rear Speaker
- In the side trim
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
- Front Bass Speaker
- Inside the door trim panel
- Sound System. Refer to OVERVIEW - SOUND SYSTEM .
- External Audio Source Connection -R199-
- In center console
- Refer to OVERVIEW - External Audio Source Connection -R199-, AUX IN
