OVERVIEW - External Audio Source Connection -R199-, AUX IN

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The External Audio Source Connection -R199- works with the radio/RNS that has an "AUX".

The audio signals from MP3 player or a portable CD/cassette player can be played in the radio/RNS using an adapter cable connected to the External Audio Source Connection -R199-. These will then be transmitted through the sound system.

For further information, refer to the Owner's Manual

Fig 1: External Audio Source Connection -R199- Overview (AUX IN)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sound System
Radio/RNS
Multifunction Steering Wheel
CAN Bus
External Audio Source Connection -R199-, AUX IN
- Connector assignment. Refer to External Audio Source Connection -R199-, CONNECTOR ASSIGNMENTS, AUX IN .
- Removing and installing. Refer to External Audio Source Connection -R199-, AUX IN .
Input Devices
- MP3 player
- iPod®
- CD and cassette player

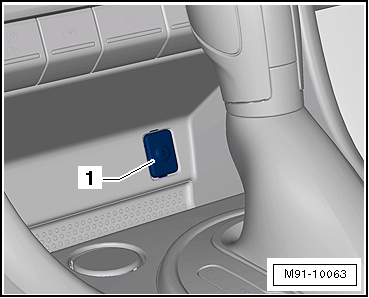

Fig 2: External Audio Source Connection -R199- Component Location, AUX IN

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The External Audio Source Connection -R199- -1- is installed in the front center console.

Fig 3: Identifying External Audio Source Connection Inside Center Console Storage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The External Audio Source Connection -R199- -1- is integrated in the unit. It is located on the right side of the front trim at the bottom.
