Instrument Cluster Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

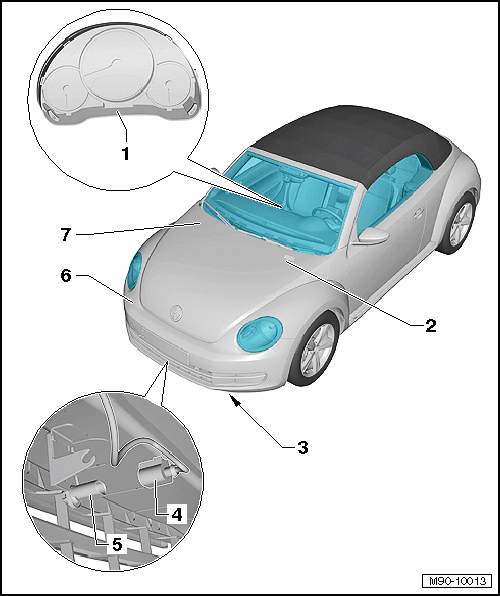

- Instrument Cluster
- Screw: 2 Nm
- With the Instrument Cluster Control Module -J285-
- Removal and installation, refer to Instrument Cluster -KX2-
- Replacing, refer to Instrument Cluster -KX2-, REPLACEMENT SETTINGS
- Brake Fluid Level Warning Switch -F34-
- Refer to Removal and Installation
- Oil Level Thermal Sensor -G266-
- Refer to [For engine(s) CVCA] Description and Operation or [For engine(s) CCTA, CBFA] Description and Operation or [For engine(s) CBUA] Description and Operation or [For engine(s) CPRA, CPKA, CPLA, CPPA] Description and Operation or [For transmission(s) 02E, 02Q] [For engine(s) CVCA, CJAA] Description and Operation
- Outside Air Temperature Sensor -G17- Connector
- Outside Air Temperature Sensor -G17-
- Removal and installation, refer to Outside Air Temperature Sensor -G17-
- Windshield Washer Fluid Level Sensor -G33-
- Removal and installation, refer to Windshield Washer Fluid Level Sensor -G33-
- Engine Coolant Level Sensor -G32-
- Refer to [For transmission(s) 02E, 02Q] [For engine(s) CVCA, CJAA] Description and Operation or [For engine(s) CPRA, CPKA, CPLA, CPPA] Description and Operation or [For engine(s) CVCA] Description and Operation or [For engine(s) CCTA, CBFA] Description and Operation or [For engine(s) CBUA] Description and Operation
