Rear Window, Installing

Perform the following:

Preparing undamaged window for glazing, refer to UNDAMAGED WINDOW, PREPARING FOR GLAZING .

Preparing new window for glazing, refer to PREPARING NEW WINDOW WITHOUT PRE-COATING FOR GLAZING .

Preparing window flange for glazing, refer to WINDOW FLANGE, PREPARING FOR GLAZING .

-- Once all the preparation work for glazing the rear window -1- is complete, open the rear lid -2- approximately 45°.

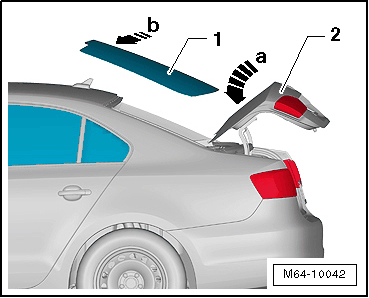

Fig 1: View Of Installing Rear Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First guide the rear window -1- under the rear lid -2- -arrow a-.

-- Then place the rear window -1- on the body flange in its installed position -arrow b-.

Installing, refer to INSTALLING .

Minimum curing time, refer to MINIMUM CURING TIME .
