Front Final Drive Identification

The front final drive 0AA is allocated to the automatic transmission 09D.

For code letters, refer to CODE LETTERS, TRANSMISSION ALLOCATION, GEAR RATIOS AND CAPACITIES .

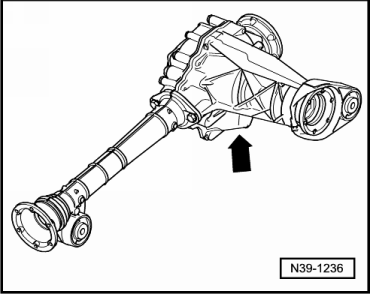

Location on front final drive -arrow-.

Fig 1: Location On Front Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

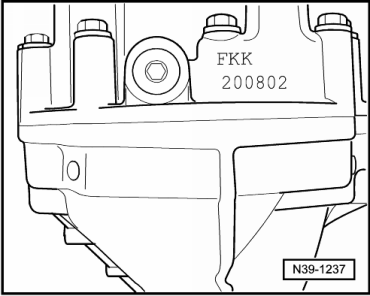

Code letters and date of manufacture of front final drive.

Fig 2: Identifying Code Letters And Date Of Manufacture Of Front Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Additional data depends on manufacture.
