Heating And A/C Unit, Front

-- Remove heating and A/C unit. Refer to HEATING AND A/C UNIT, FRONT .

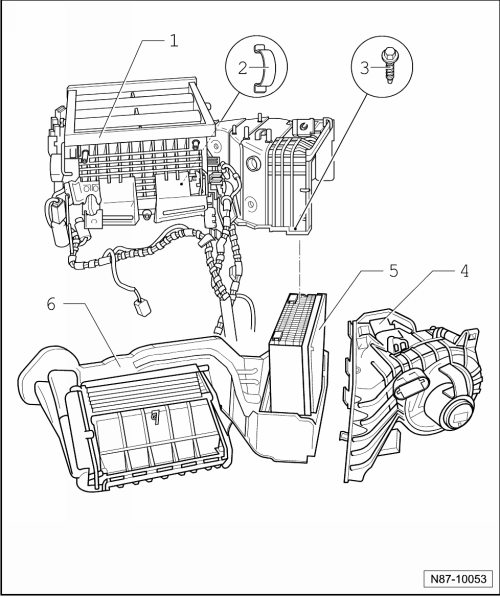

Fig 1: Heating And A/C Unit, Front Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Upper Part Of Air Distribution Box
   • Bolts -3- and clips -2- attach the upper section to the lower section.
2. Retaining Clip
   • Quantity: 3
3. Securing Bolts
4. Blower Housing
5. Evaporator
   • Removing and installing, refer to EVAPORATOR, FRONT .
   • Note seal Fig 2
6. Lower Part Of Air Distribution Housing

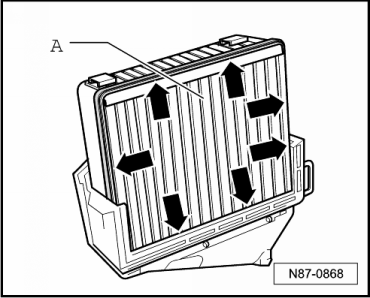

Fig 2: Identifying Evaporator Foam Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Note circular seal -arrows- at evaporator.
