Windshield Wiper Motor, Installing In Wiper Frame

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench V.A.G 1331/

-- In vehicles starting with 11.07, deactivate the Alternating Park Position (APP function), refer to WIPER MOTOR APP FUNCTIONS, DEACTIVATING STARTING 11.07 .

NOTE:

If during a repair a windshield wiper linkage with part number 7L0.955.601.B/ 602.B or higher is installed on a Touareg through MY 2007 (CW 22/07), the plenum chamber cover must also be replaced. Use plenum chamber cover 7L6.819.401.K 9B9, one a cover with a higher index number.

-- Insert windshield wiper motor into wiper frame and secure it with mounting bolts -arrows-.

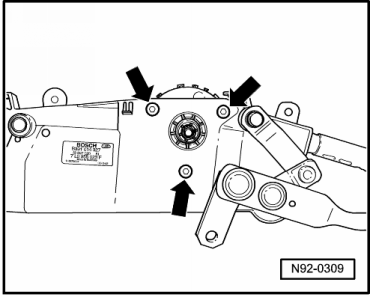

Fig 1: Identifying Windshield Wiper Motor Mounting Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the threaded connections to the specification given in the assembly overview. Refer to WINDSHIELD WIPER SYSTEM OVERVIEW .

-- Let windshield wiper motor run to rest position; to do so, connect the battery, attach the connector to the windshield wiper motor and operate windshield wiper switch briefly.

NOTE:

Hood (Front Hood Switch -F266-) must be closed to activate windshield wiper functions.

-- Place crank -2- onto shaft of windshield wiper motor, the distance -A- between crank -2- and pin -3- must be 4 mm.

-- Thread on crank -2- with hex nut -1-.

Fig 2: Identifying Crank, Pin & Windshield Wiper Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the hex nut -1- to the specification given in the assembly overview. Refer to WINDSHIELD WIPER SYSTEM OVERVIEW .

CAUTION:

When connecting battery, always perform work procedure as described in service information. Refer to BATTERY, DISCONNECTING AND CONNECTING . Not adhering to sequence will result in the deactivation of Main Battery Switch -E74- and subsequent damage to electrical system components.
Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .

-- Connect battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

NOTE:

If Wiper motor control module -J400- or Windshield Wiper Motor -V- is replaced, Wiper motor control module must be coded. Refer to WIPER MOTOR CONTROL MODULE -J400-, CODING .
