Telematics System Overview

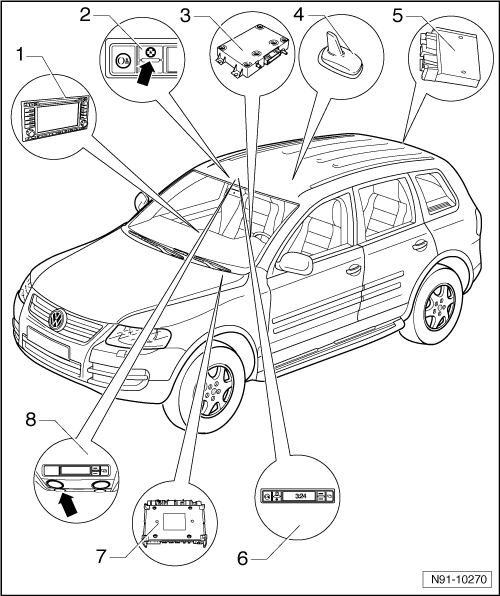

Fig 1: View Of Telematics System Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Radio/Navigation Display Control Module -J503-
Indicator Lamp -K186-
- Installed in Telematics Control Head
- Designed as LED
- Troubleshooting on Telematics system, refer to TELEMATICS SYSTEM
Telematics Control Module -J499-
- Notes for removing and installing Telematics Control Module, refer to TELEMATICS CONTROL MODULE .
- Installed below front right seat
- Removing and installing, refer to TELEMATICS CONTROL MODULE .
Telephone Antenna -R65-
- Installed at front on roof.
- Removing and installing, refer to ROOF ANTENNA .
Comfort System Central Control Module -J393-
- The functions unlocking and locking doors for Telematics system are carried out via Comfort System Central Control Module.
- Installed in right of luggage compartment.
Telematics Control Head -E264-
- Installed in front in roof console
- Removing and installing, refer to TELEMATICS CONTROL HEAD .
- Description of function of buttons in Telematics control head, refer to TELEMATICS CONTROL HEAD BUTTONS, FUNCTIONALITY .
Vehicle Electrical System Control Module -J519-
- Functions for emergency flasher blinking and operation of horn for Telematics system are carried out via Vehicle Electrical System Control Module.
- Installed under instrument panel in driver's side footwell.
Microphone -R38-
- Installed in front roof console.
- Removing and installing.
