Telematics Control Head

Removing

Before starting repair work, batteries must be disconnected! Refer to [For engine(s) CATA, AXQ, BHK, BWF, BAR] Removal and Installation .

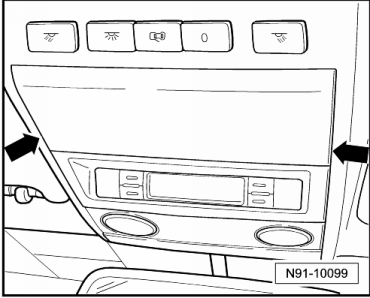

-- Unclip cover in roof console with a suitable screwdriver at locations marked with -arrows-.

Fig 1: Identifying Rear Portion Of Roof Console Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

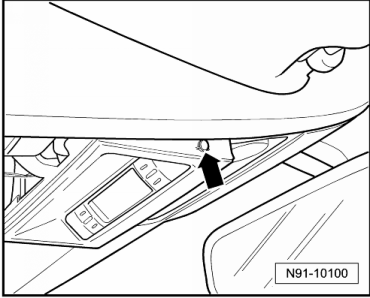

-- Unclip display unit with a suitable screwdriver on places marked with -arrow- on both sides.

Fig 2: Identifying Both Sides Of Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

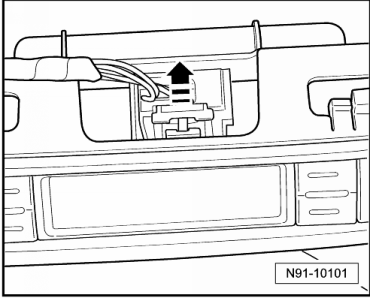

Pull locking mechanism on display unit connector out in -direction of arrow-.

Fig 3: Identifying Removal Of Red Connector Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

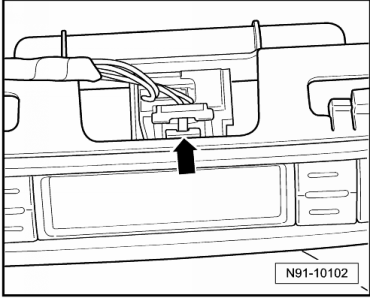

-- Press securing tab in -direction of arrow- and remove connector.

Fig 4: Identifying Connector Lock & Electrical Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is performed in the reverse order of removal.

-- Check coding of Telematics system and code it anew if necessary. Refer to TELEMATICS CONTROL MODULE, CODING .
