Windshield Washer System Overview
WARNING: This page is about a different car, the 2010 Volkswagen Passat, 2009 Volkswagen Passat, 2008 Volkswagen Passat, 2007 Volkswagen Passat, and 2006 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

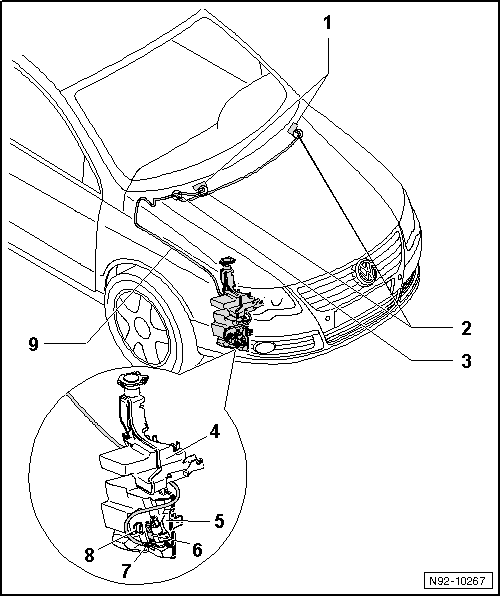

The washer fluid tank is installed as a one- or two-part version, depending on equipment. The following illustration shows the two-part Sedan version of the windshield/headlamp washer system on the sedan.
- Spray Nozzles Windshield Washer System
- Removing and installing, refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES .
- Adjusting, refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Angle Coupling
- Connection to front windshield washer nozzle.
- Washer hose couplings, overview, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Y-Connection
- Allocation of washer fluid line to windshield spray nozzles.
- Windshield and Headlamp Washer Fluid Reservoir Upper Section
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR UPPER SECTION .
- One-part windshield washer system tank, removing and installing, refer to ONE-PIECE WASHER FLUID RESERVOIR .
- Windshield and Headlamp Washer Fluid Reservoir Lower Section
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR LOWER SECTION .
- Windshield Washer Pump -V5-
- Windshield and Rear Window Washer Pump -V59- for wagon.
- Removing and installing, refer to WINDSHIELD WASHER PUMP -V5- AND WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
- Checking, refer to Windshield and Rear Window Washer Pump -V59- VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519- OUTPUT DIAGNOSTIC TEST MODE .
- Angle Coupling
- Connection on Windshield Washer Pump -V5-.
- Washer hose couplings, overview, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
- Hose
- Hose repair, refer to HOSES, REPAIRING .
