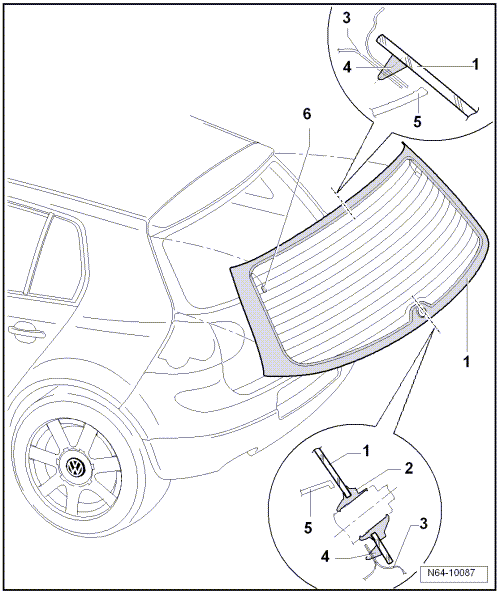

Rear Window Assembly Overview
- Rear window
- Removing and Installing REAR WINDOW, UNDAMAGED
- Seal
- For rear window wiper
- Tailgate
- PUR adhesive sealant
- Bead cross section: Width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange).
- Minimum Curing Time MINIMUM CURING TIME
- Trim
- Removing trim Removal and Installation
- Window antenna contact
- Right and left
