Rear Window, Undamaged

Removing

-- Removing side luggage compartment trim Removal and Installation

-- Removing rear window wiper motor refer to REAR WINDOW WIPER MOTOR -V12-

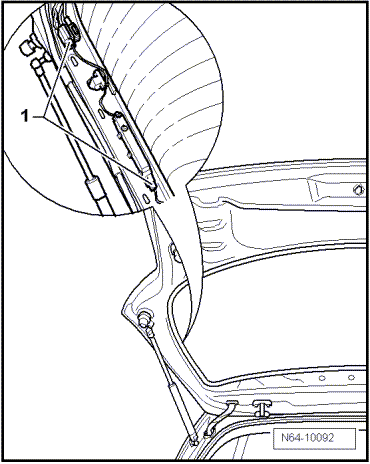

-- Disconnect left and right heated rear window and window antenna connectors -1-.

Fig 1: Disconnecting Left And Right Heated Rear Window And Window Antenna Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Thrust awl V.A.G 1474/2 -1- through adhesive bead.

Fig 2: Pulling Cutting Cord Inside Through Adhesive Material Using Awl V.A.G 1474/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull cutting cord -2- inside through adhesive material using awl V.A.G 1474/2 -1-.

-- Secure end of cutting cord -3- with handle -1- before pulling out.

Fig 3: Securing End Of Cutting Cord With Handle Before Pulling Out

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

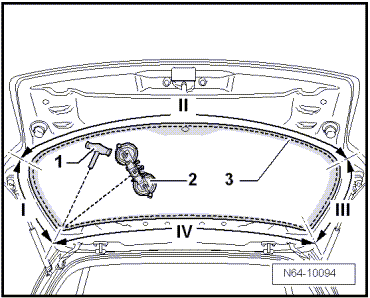

-- Lay cutting cord -3- around the window and also guide inside the second cord end.

-- Secure end of cutting cord to spooling tool V.A.G 1654 -2-.

-- Place spooling tool V.A.G 1654 -2- in "position I".

-- Relocate spooling tool V.A.G 1654 -2- appropriately and cut window free.

-- While cutting free, press cutting cord -3- against window using wedge V.A.G 1474/5 to have clearance to window flange.

Installing

Window Flange, Preparing for Glazing WINDOW FLANGE, PREPARING FOR GLAZING

Installation Information INSTALLATION INFORMATION

Minimum Curing Time MINIMUM CURING TIME
