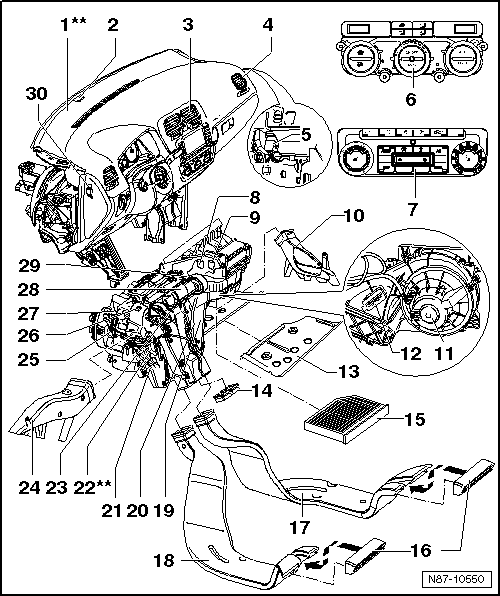

Passenger Compartment CLIMATRONIC
NOTE:
Disconnect the battery before removing components marked with a **. Refer to Removal and Installation .
A data plate on the lock carrier indicates the refrigerant used and capacity.
- Dash Panel **
- Removing and installing, refer to Removal and Installation .
- Sunlight Photo Sensor -G107- or Sunlight Photo Sensor 2 -G134-
- Checking: use the Vehicle Diagnostic Tester.
- Controls temperature door and fresh air blow depending on light intensity.
- Emergency running in the event of failure: the Climatronic control module -J255- utilizes a fixed value.
- Removing and installing, refer to SUNLIGHT PHOTO SENSORS -G107- / -G134- .
- Center Vents
- Removing, refer to CENTER VENT .
- Air Outlet
- Removing, refer to DRIVER AND PASSENGER SIDE VENTS .
- Right Vent Temperature Sensor -G151-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to RIGHT VENT TEMPERATURE SENSOR -G151- .
- Front A/C Display Control Head -E87- with Climatronic Control Module -J255-, Through 18 May 2008
- The Climatronic Control Module and the Front A/C Display Control Head are one component that cannot be disassembled.
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to FRONT A/C DISPLAY CONTROL HEAD -E87- / -J255- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Front A/C Display Control Head -E87- with Climatronic Control Module -J255-, From 25 May 2008
- The Climatronic Control Module and the Front A/C Display Control Head are one component that cannot be disassembled.
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to FRONT A/C DISPLAY CONTROL HEAD -E87- / -J255- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Air Flow Door Motor -V71-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to AIR FLOW DOOR MOTOR -V71- WITH BACK PRESSURE DOOR MOTOR POSITION SENSOR -G113- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Recirculation Door Motor -V113-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to FRESH/RECIRCULATING AIR DOOR MOTOR -V154- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Right Footwell Vent
- Removing and installing, refer to RIGHT FOOTWELL VENT .
- Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126- NOTE:
The fresh air blower control module and the fresh air blower are in a single housing together and cannot be replaced individually.
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to FRESH AIR BLOWER -V2- / FRESH AIR BLOWER CONTROL MODULE -J126- .
- Connector
- Heating Unit Partition
- Removing, refer to "Partition" under FRESH AIR BLOWER -V2- .
- Cap
- Only in vehicles without air duct to vent installed in center console at rear.
- Dust and Pollen Filter
- With EVAP canister.
- Removing and installing, refer to DUST AND POLLEN FILTER .
- Air Outlet Grille
- Rear Channel For Right Footwell
- Removing and installing, refer to REAR FOOTWELL CHANNEL .
- Rear Channel For Left Footwell
- Removing and installing, refer to REAR FOOTWELL CHANNEL .
- Evaporator Vent Temperature Sensor -G263- or Evaporator Temperature Sensor -G308-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to EVAPORATOR VENT OR EVAPORATOR TEMPERATURE SENSOR -G263- / -G308- .
- Right Temperature Door Motor -V159-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to RIGHT TEMPERATURE DOOR MOTOR -V159- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Heater Core
- Removing and installing, refer to HEATER CORE .
- Auxiliary Heater Heating Element -Z35-
- Only installed on vehicles with Diesel engine.
- Central Air Door Motor -V70-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to CENTRAL AIR DOOR MOTOR -V70- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Left Footwell Vent
- Removing and installing, refer to LEFT FOOTWELL VENT .
- Left Temperature Door Motor -V158-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to LEFT TEMPERATURE DOOR MOTOR -V158- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Left Footwell Vent Temperature Sensor -G261-
- Checking: use the Vehicle Diagnostic Tester.
- Removing, refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR -G261- .
- Defroster Door Motor -V107-
- Checking: use the Vehicle Diagnostic Tester.
- Removing and installing, refer to DEFROSTER DOOR MOTOR -V107- .
- Replacing: perform a basic setting using the Vehicle Diagnostic Tester. Refer to CHECKING AND ADJUSTING COMPONENTS .
- Heating and A/C Unit
- Removing and installing, refer to HEATING AND A/C UNIT .
- Disassembling and assembling, refer to CLIMATRONIC HEATER AND A/C UNIT .
- Right Footwell Vent Temperature Sensor -G262-
- Checking: use the Vehicle Diagnostic Tester.
- Removing, refer to RIGHT FOOTWELL VENT TEMPERATURE SENSOR -G262- .
- Left Vent Temperature Sensor -G150-
- Checking: use the Vehicle Diagnostic Tester.
- Removing, refer to RIGHT VENT TEMPERATURE SENSOR -G151- .
