CLIMATRONIC Heater And A/C Unit

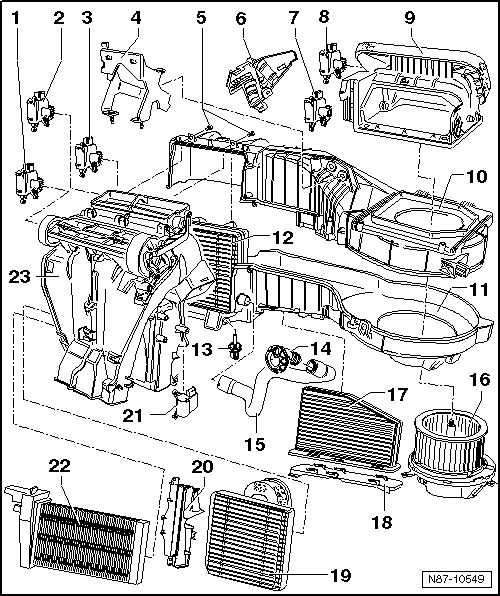

Fig 1: Identifying Climatronic Heater And A/C Unit
GWWN87-10549Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Central Air Door Motor -V70-
  2. Left Temperature Door Motor -V158-
  3. Defroster Door Motor -V107-
  4. Bracket
  5. Screws
    • Bolts must be unscrewed to separate air distributor and evaporator housing.
  6. Cover
  7. Recirculation Door Motor -V113-
  8. Air Flow Door Motor -V71-
  9. Housing For Air Entry
    • With fresh air and recirculation door.
    • With air flow door (Climatronic).
    • Removing and installing, refer to AIR INTAKE HOUSING .
  10. Upper Section Of Evaporator Housing
  11. Lower Section Of Evaporator Housing
  12. Evaporator
  13. Evaporator Vent Temperature Sensor -G263- or Evaporator Temperature Sensor -G308-
  14. Connection For Glove Compartment Cooling
  15. Coolant Hose For Glove Compartment Cooling
  16. Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
    • Cannot be replaced separately.
    • The fresh air blower control module -J126- and thefresh air blower -V2- are a single unit.
    • Removing and installing, refer to FRESH AIR BLOWER -V2- .
  17. Dust and Pollen Filter
  18. Cover
    • For dust and pollen filter.
  19. Heater Core
  20. Heater Core Trim
  21. Right Temperature Door Motor -V159-
  22. Auxiliary Heater Heating Element -Z35-
    • Only installed on vehicles with Diesel engine.
  23. Junction Box
