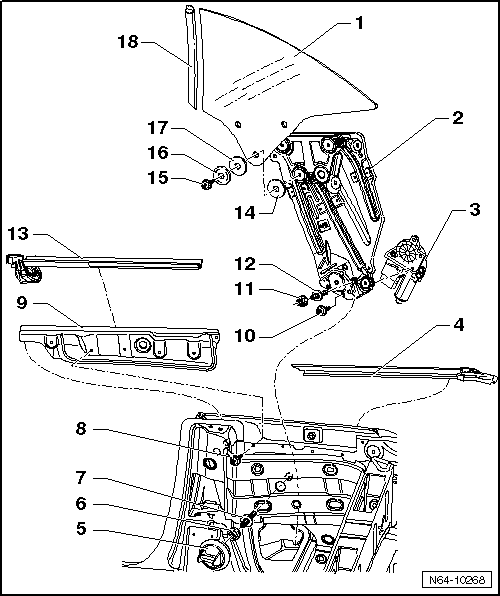

Side Window Assembly Overview
- Side Window
- Removing with subframe, refer to SIDE WINDOW WITH WINDOW REGULATOR, REMOVING
- Removing when subframe is removed, refer to SIDE WINDOW, REMOVING
- Window regulator
- Window Regulator Motor
- Outer window shaft seal
- Cover
- Nut
- Quantity: 3
- 10 Nm
- Threaded pins
- Quantity: 3
- 10 Nm
- Bolt
- Quantity: 6
- 13 Nm
- Cover plate
- Bolt
- Quantity: 3
- 3.5 Nm
- Locking nut
- Quantity: 1
- 10 Nm
- Threaded pins
- Quantity: 1
- 10 Nm
- Inner window recess seal
- Removing, refer to WINDOW RECESS SEALS ASSEMBLY OVERVIEW
- Outer plastic washer
- Quantity: 3
- Bolt
- Quantity: 3
- 6.5 Nm
- Metal washer
- Quantity: 3
- Inner plastic washer
- Quantity: 3
- Seal
- Is pulled into the mount on the glass
