Window Recess Seals Assembly Overview

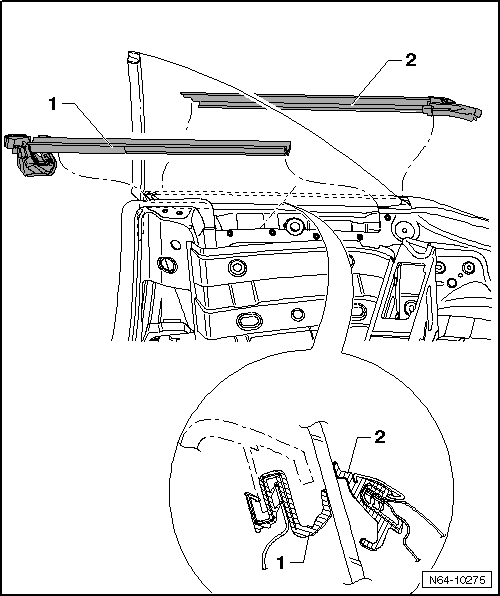

Fig 1: Identifying Assembly Overview: Window Recess Seals
GWWN64-10275Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Inner window recess seal
    • Is connected to sheet metal flange.
  2. Outer window shaft seal
    • Is connected to sheet metal flange
    • With trim molding, do not bend when removing from sheet metal flange.
