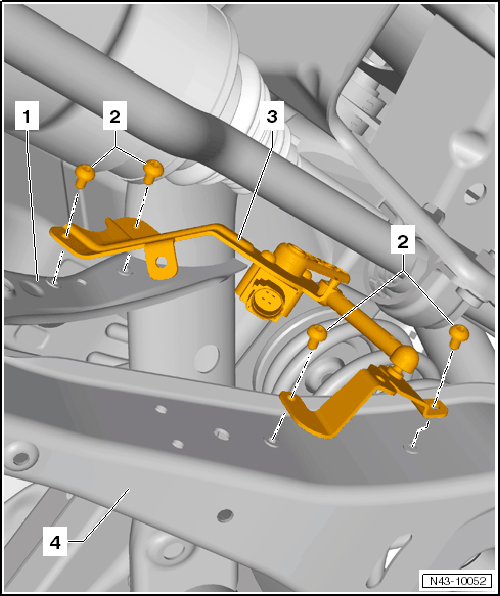

Left Rear Level Control System Sensor Assembly Overview, AWD
WARNING: This page is about a different car, the 2010 Volkswagen Passat and 2009 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicle level sensor is available as replacement part only complete with coupling rod and upper and lower retaining plates.
Replacing with subframe installed, refer to LEFT REAR LEVEL CONTROL SYSTEM SENSOR, AWD .
- Subframe
- Bolt
- M5 x 20
- 5 Nm
- Left Rear Level Control System Sensor -G76-
- Complete with components
- Lever -arrow- must point toward vehicle exterior
- Removing and Installing, refer to LEFT REAR LEVEL CONTROL SYSTEM SENSOR, AWD
- If the sensor was removed and then installed, then a basic setting to the adaptive chassis must be performed. Refer to ADAPTIVE CHASSIS DCC, BASIC SETTING .
- After replacing, perform basic setting of the headlamps using Vehicle Diagnostic Tester in "Guided Fault Finding" function.
- Lower Transverse Link
