Left Rear Level Control System Sensor, AWD

WARNING: This page is about a different car, the 2010 Volkswagen Passat and 2009 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque wrenchV.A.G 1331

Removing

-- Disconnect the connector.

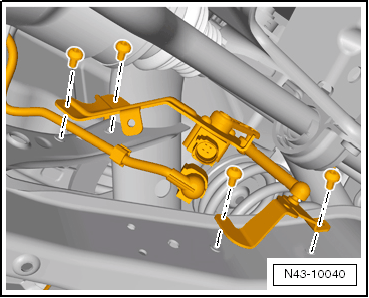

Fig 1: Left Rear Level Control System Sensor Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Remove the bolts.

-- Remove left rear level control system sensor -G76-.

Installing

Install in reverse order of removal. Note the following:

The level control system sensor lever must point toward vehicle exterior.

-- Perform a basic setting on the adaptive chassis DCC. Refer to ADAPTIVE CHASSIS DCC, BASIC SETTING .

-- Perform a basic setting on the headlamps using Vehicle Diagnostic Tester in "Guided Fault Finding" function.

Tightening Specifications

Component	Tightening Specification
Bolt to subframe/lower transverse link	5 Nm
