TPMS Module Coding (TT 44-11-02)
Publication date: 2011-05-13Reference number: TT 44-11-02
TPMS MODULE CODING
TECH TIPS
Reference Number(s): TT 44-11-02, Date of Issue:
May 13, 2011
| VOLKSWAGEN: | 2004-2007 Touareg; 2004-2006 Phaeton; 2006-2010 Jetta, Golf/GTI, Passat, EOS; 2009-2010 Tiguan, CC |
| GROUP: | 44 - Wheels - Tires, Wheel Alignment |
SERVICE INFORMATION
2004-2007 Touareg, 2004-2006 Phaeton, 2006-2010 Jetta, Golf/GTI, Passat, EOS, 2009-2010 Tiguan, CC - TPMS Module Coding

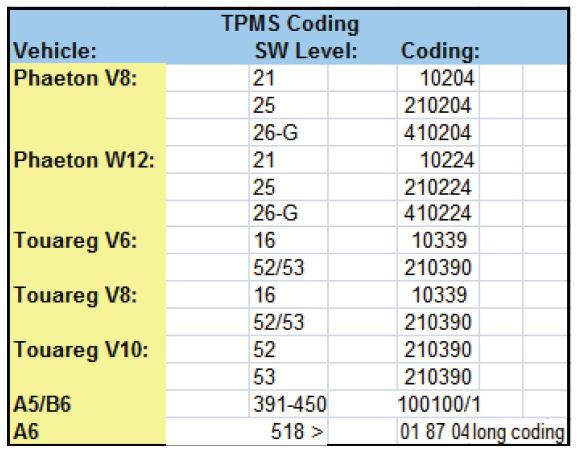

The Tire Pressure Monitoring Control Module should be coded according to the module SW level and the engine installed in the vehicle. The following chart includes coding for all currently possible SW levels and engine configurations.
