Front Axle ABS Components, Removing and Installing: Notes

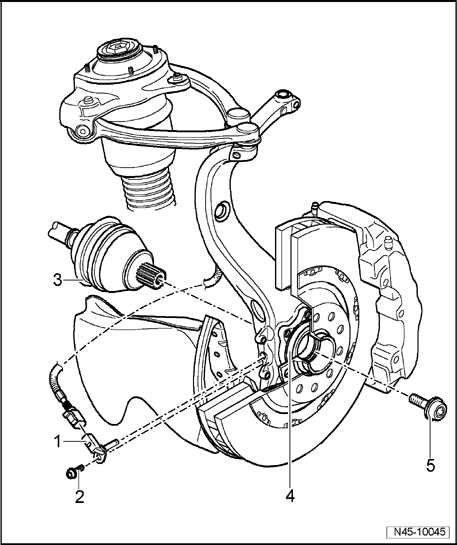

Fig 1: Front Axle ABS Components, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - ABS wheel speed sensor

• Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide grease G 000 650
• Replace → Front Axle Speed Sensor, Removing and Installing

2 - Hex socket bolt, 10 Nm

3 - Axle shaft

4 - Wheel hub with wheel bearing

• The ABS sensor ring is installed in the wheel bearing

5 - Socket head bolt

• Always replace. → 40 - FRONT SUSPENSION .
