Selector Mechanism Assembly Overview

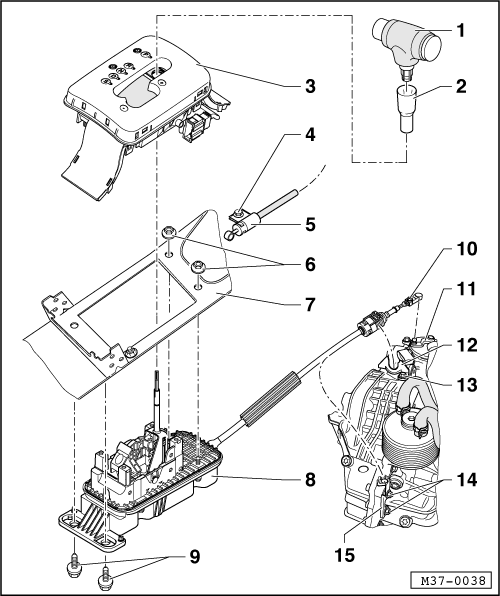

Fig 1: Selector Mechanism, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector lever handle
- Removing and installing SELECTOR LEVER HANDLE
Sleeve
- Engages in selector lever handle
- Locks the removal of selector lever handle
Cover
- With circuit board and frame
- Assembly overview SELECTOR MECHANISM FRAME ASSEMBLY OVERVIEW and SELECTOR MECHANISM COVER ASSEMBLY OVERVIEW
Bolt, 10 Nm
- For locking cable adjustment
Locking cable
- Removing and installing LOCKING CABLE
Nut, 23 Nm
- For selector mechanism to body
Floor plate/body
Selector mechanism
Bolt, 23 Nm
Bolt, 13 Nm
- For selector lever cable adjustment
Lever
- For selector shaft
Pivot
- For selector lever cable to transmission
Bolt, 23 Nm
- For mounting bracket
- 2x
Nut, 8 ± 0.8 Nm
- For bracket to transmission, refer to item 15
Bracket
- With clip for selector lever cable
