Selector Mechanism Frame Assembly Overview

1 - Frame, upper section

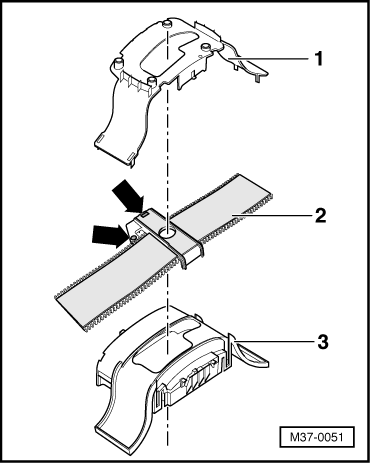

Fig 1: Identifying Tiptronic Switch -F189-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2 - Cover strip

• With 2 magnets -arrows- for Tiptronic Switch -F189- and selector lever display
• Magnets must be secured firmly to cover strip

3 - Frame, lower section

• Guides cover strip

-- Removing and installing selector mechanism cover and circuit board SELECTOR MECHANISM COVER AND CIRCUIT BOARD .
