Function Test
- The gear lever must rest in the 3rd/4th gear gate with transmission in neutral.
-- Operate clutch.
-- Select all gears several times. Pay particular attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection, the selector shaft play (lift) should be checked as follows:
-- Engage 1st gear.
-- Press gear lever to left onto stop and release.
-- At same time observe selector shaft in gear box (2nd mechanic).

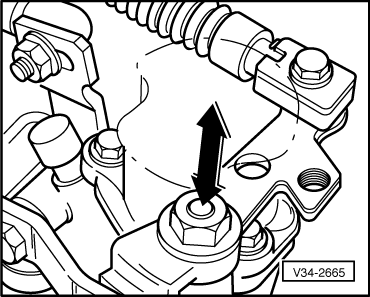

When moving gear selector lever shaft must move approx. 1 mm in direction of -arrow-.

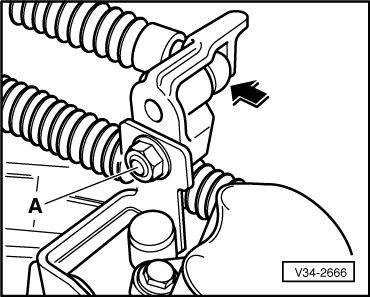

-- If not, disengage first gear and again loosen nut -A- for actuating arm/gate selector cable mounting. (The gate selector cable has a certain amount of play at mounting - due to transfer elements).
-- Take up gate selector cable play, by lightly pressing mounting toward bulkhead direction of -arrow-.
-- Tighten nut -A- in this position.
- Gear lever must rest in 3rd/4th gear gate with transmission in neutral.
-- Operate clutch.
-- Select all gears several times. Pay attention to operation of reverse gear lock.
Should a gear fail to engage smoothly after repeated selection, the selector shaft play (lift) should be checked as follows:
-- Engage 1st gear.
-- Press gear lever to left onto stop and release.
-- At same time observe selector shaft in transmission (2nd mechanic).
When moving the gear lever selector shaft must move approx. 1 mm in direction of -arrow-.
-- If not, adjust selector mechanism GEAR SELECTOR MECHANISM, ADJUSTING .
