Selector Cables Assembly Overview

NOTE:

Lubricate all mountings and sliding surfaces with Polyurea grease G 052 142 A2.

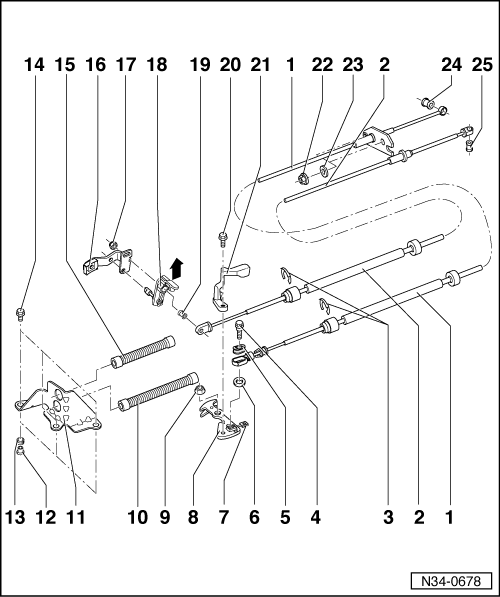

Fig 1: View Of Selector Cables Components
GWWN34-0678Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Gear selector cable
  2. Gate selector cable
  3. Circlip
    • When removing do not damage boot
  4. Hex combi bolt, 25 Nm
    • With shoulder
    • Gear selector cable to gear change lever
  5. Rubber bushing
    • For gear change cable to gear lever
    • To replace boot press out of end piece
  6. Washer
    • Install between gear selector cable and gear lever
  7. Square nut
    • Insert into gear lever
  8. Gear selector lever
  9. Self-locking hex nut, 25 Nm
    • For gear lever
  10. Boot
    • Carefully pull over gear selector cable end piece
    • Use MoS2 grease
  11. Support bracket
  12. Distance piece
  13. Bushing
    • Support bracket mounting to transmission
  14. Hex bolt, 25 Nm
    • For support bracket
  15. Boot
    • Carefully pull over gate selector cable end piece
    • Use MoS2 grease
  16. Relay lever
  17. Self-locking hex nut, 15 Nm
    • For relay lever to actuating arm
    • Only loosen to adjust selector mechanism
  18. Actuating arm
  19. Rubber bushing
    • For gate selector cable to actuating arm
    • Press in and out with drift
  20. Hex bolt, 25 Nm
    • For balance weight
  21. Balance weight
    • Remove to adjust selector mechanism
  22. Self-locking hex nut, 15 Nm
    • For selector cable to selector housing
  23. Rubber washer
  24. Rubber bushing
    • For gear selector cable/gear change lever
    • Press in and out with drift
  25. Rubber bushing
    • For gate selector cable/selector bracket
    • Press in and out with a drift


NOTE:

Lubricate all mountings and sliding surfaces with Polyurea grease Part No. G 052 142 A2.

Fig 1: Exploded View Of Selector Cables Components
GWWN34-0963Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Gear selector cable
  2. Gate selector cable
  3. Circlip
  4. Circlip
    • Do not damage cable when removing
  5. Gear lever housing
  6. Support bracket
  7. Bushing
    • Support bracket mounting to transmission
  8. Distance piece
  9. Hex bolt, 25 Nm
    • For support bracket
  10. Cable locking mechanism
    • For gate selector cable to relay lever
  11. Cable locking mechanism
    • For gear selector cable to gear change lever
  12. Circlip
  13. Bushing
  14. Relay lever
  15. Shoe
  16. Transmission selector lever
  17. Hex nut, 25 Nm
