Side window, removing and installing
NOTE:

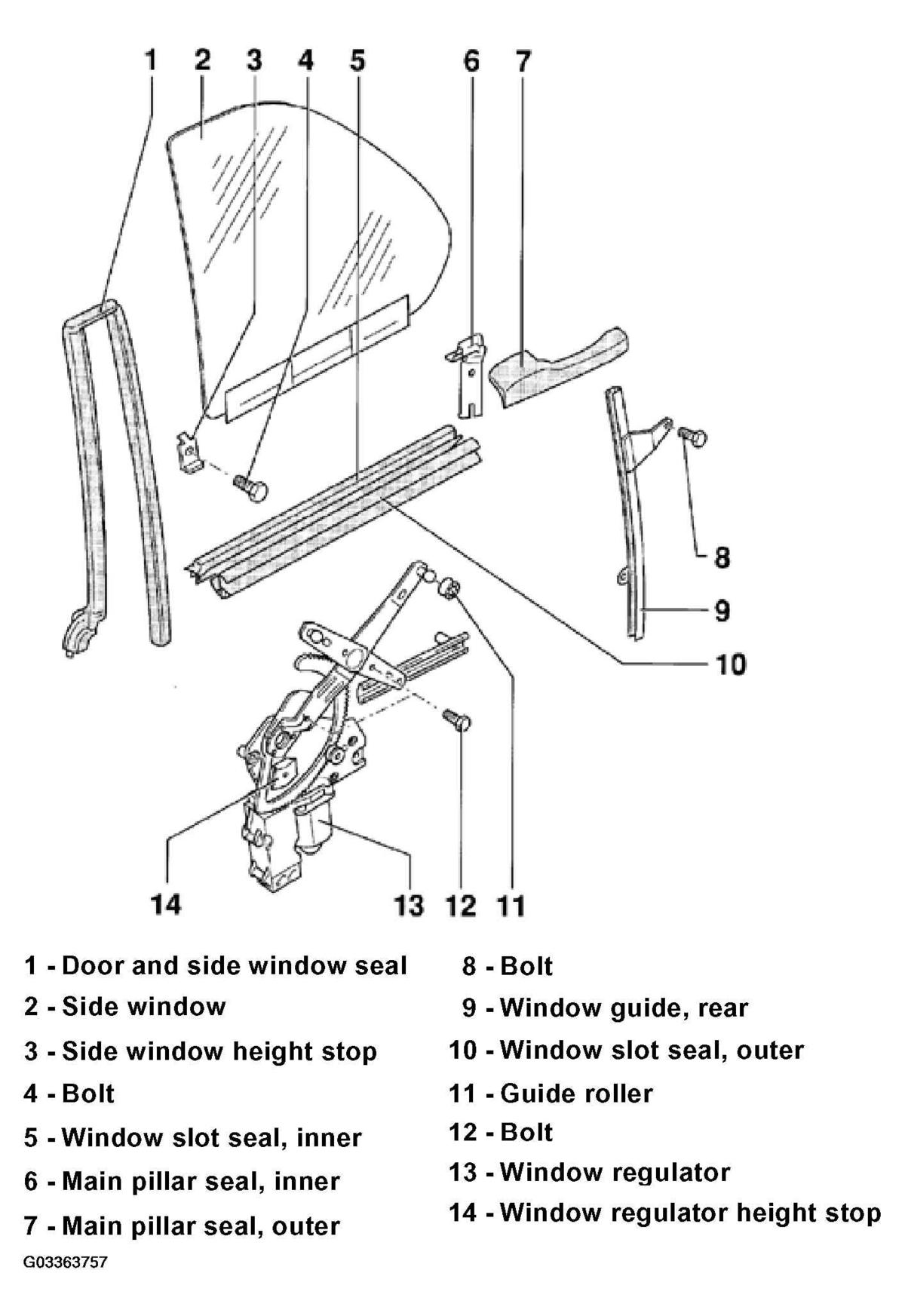

The following list refers to Fig 1
.
- - Door and side window seal
- - Side window
- Removing. See SIDE WINDOW, REMOVING .
- Adjusting. See SIDE WINDOW, ADJUSTING .
- - Side window height stop
- - Bolt
- 7 N.m (62 in. lb)
- - Window slot seal, inner
- Pushed onto flange
- - Main pillar seal, inner
- - Main pillar seal, outer
- - Bolt
- 7 N.m (62 in. lb)
- - Window guide, rear
- Adjusting. See SIDE WINDOW, ADJUSTING .
- - Window slot seal, outer
- Pushed onto flange
- - Guide roller
- - Bolt
- 7 N.m (62 in. lb)
- - Window regulator
- Removing and installing. See ELECTRIC WINDOW REGULATORS, REMOVING AND INSTALLING .
- - Window regulator height stop
- Adjusting. See SIDE WINDOW HEIGHT ADJUSTMENT .
