Electric window regulators, removing and installing

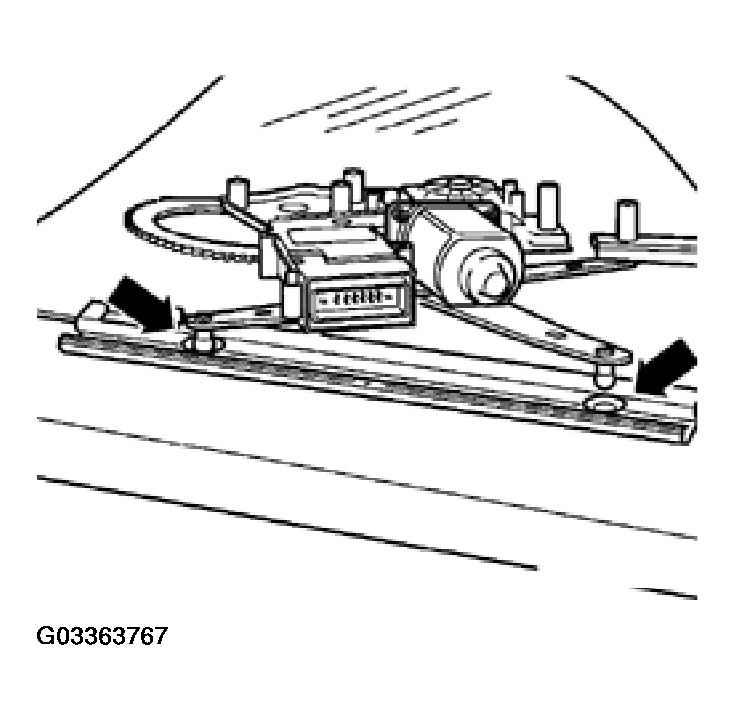

Unclip window from window regulator -arrow-.

Fig 1: Unclipping Window From Window Regulator

G03363767

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Push side window upward and secure (e.g. with adhesive tape).
Lower window regulator completely.
Disconnect connector from window regulator motor.
Loosen fasteners for window regulator.

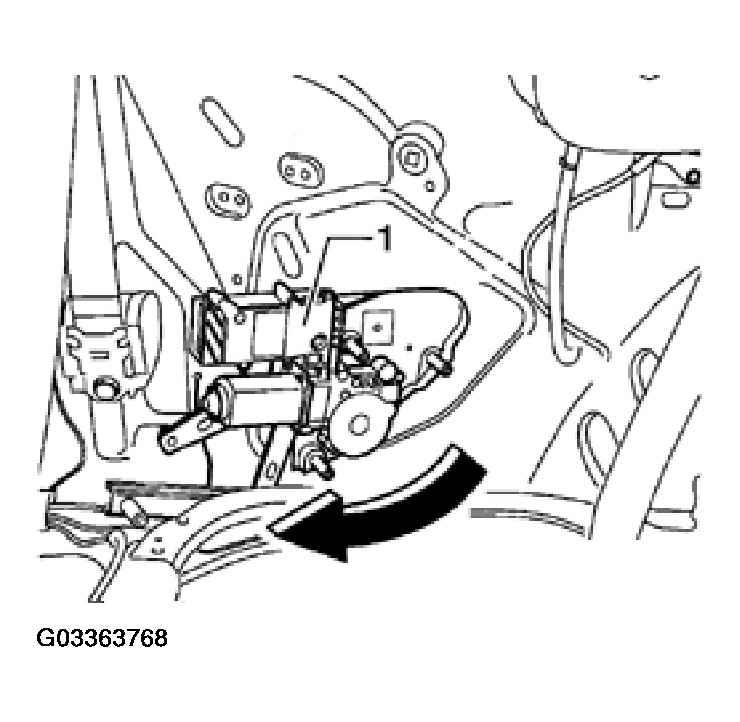

Remove window regulator -1- down in direction of arrow.

Fig 2: Removing Window Regulator

G03363768

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: After installing, check side window adjustment.
