Friction torque, checking

A - Torque gauge, commercially available 0 - 600 Ncm (0 - 53 in. lb)

B - Socket (41 mm)

• Coat bearings beforehand with AT before installation.

Friction torque for these bearings must be 180 - 220 Ncm (16 - 20 in lb) greater than friction torque at drive pinion.

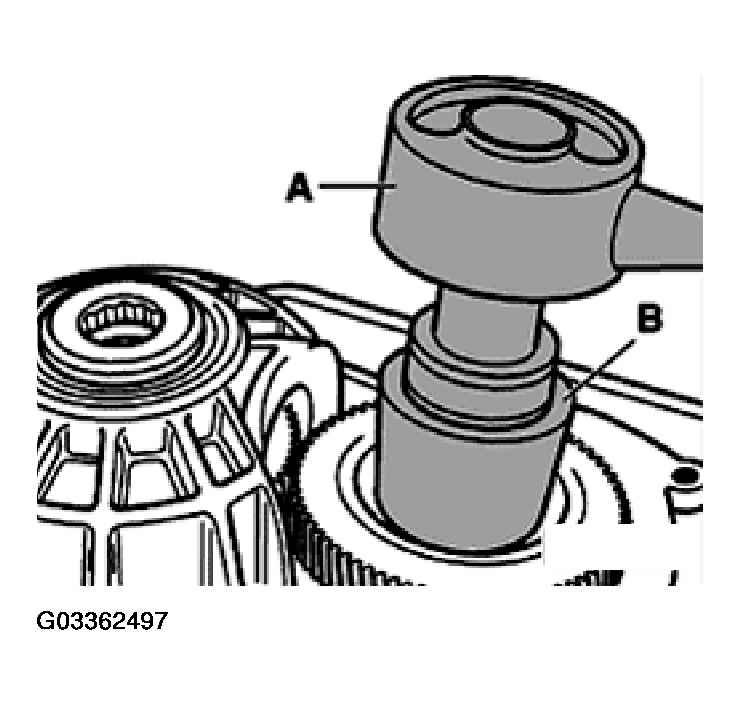

Fig 1: Checking Drive Pinion Friction Torque

Courtesy of VOLKSWAGEN OF AMERICA, INC.
