Planet carrier, adjusting: Example:

Measured value 2.00 mm

Insert 1.7 mm thick shim.

• Remove small input shaft bolt.
• Insert correct shim -3- on small input shaft -arrow-.

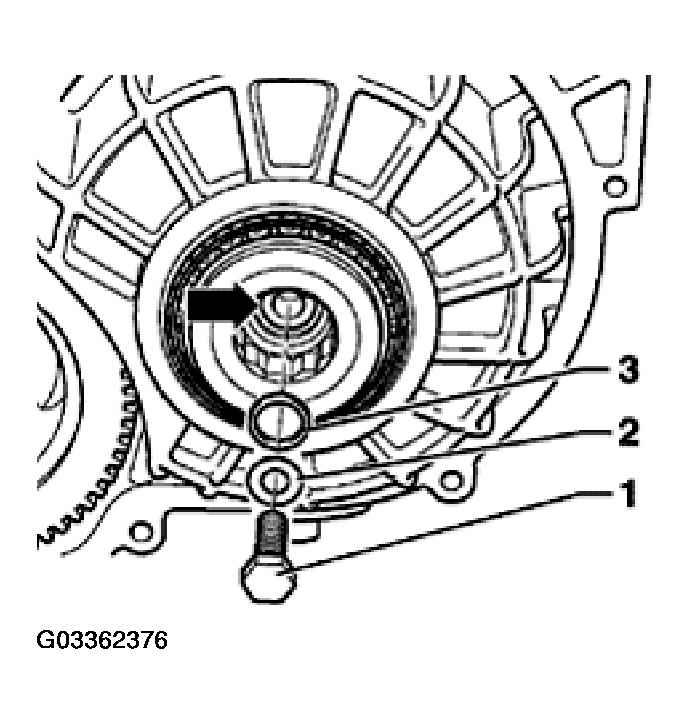

  Fig 1: Inserting Correct Shim On Small Input Shaft

  Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Tighten small input shaft bolt -1- with washer -2-.

  Tightening torque 30 N.m (22 ft lb).

• Perform planet carrier measurement.
