Transmission with selector elements: Notes

Position of selector elements

The following list pertains to Fig 1.

1. = 2nd and 4th gear brake -B2-
2. = Reverse gear clutch -K2-
3. = 1st to 3rd gear clutch -K1-
4. = 3rd and 4th gear clutch -K3-
5. = Reverse gear brake -B1-
6. = Free wheel clutch
7. = Lock-up clutch integrated in torque converter -LC-

   Before starting transmission repairs, first check for Diagnostic Trouble Codes (DTC) using On Board Diagnostic (OBD).

   See ON BOARD DIAGNOSTIC (OBD), PERFORMING .

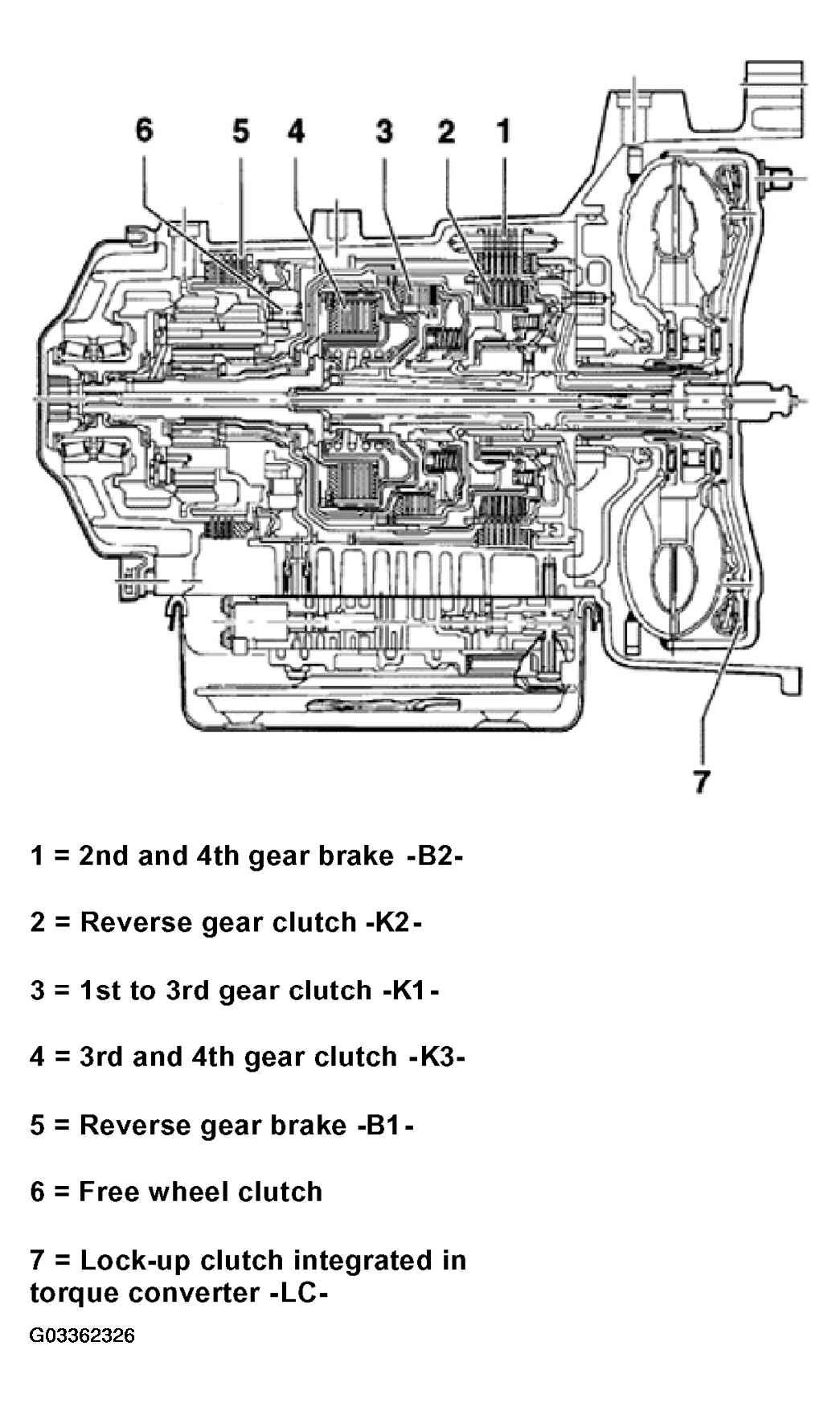

Fig 1: Sectional View Of Transmission With Selector Elements (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
