Accessory Drive Belt Removal and Installation: Installation

Reference: ACCESSORY DRIVE BELT TENSION INSPECTION

1. Loosen belt tension by turning tensioner (1) in clockwise direction using wrench (2). After loosening, install accessory drive belt (3).
   NOTE: Do not apply a torque of 59 N.m (6.0 kgf-m, 43.5 lbf-ft) or higher to the tensioner pulley.
   Make sure drive belt is installed in grooves of each pulley correctly.

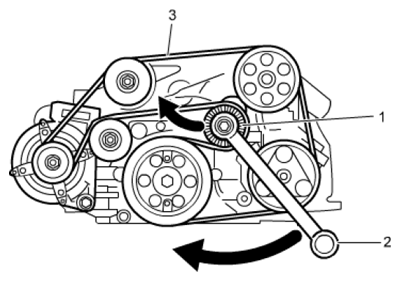

   Fig 1: Turning Tensioner And Accessory Drive Belt

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install right side front fender lower lining.
3. Connect negative (-) cable at battery.
