CVT Fluid Cooler Removal and Installation: Installation

Reverse removal procedure noting the following points.

• Tighten CVT fluid cooler bracket bolts, if removed.

  Tightening torque

  CVT fluid cooler bracket bolt No. 1 (a): 20 N.m (2.0 kg-m, 15.0 lbf-ft)

  CVT fluid cooler bracket bolt No. 2 (b): 85 N.m (8.7 kg-m, 63.0 lbf-ft)

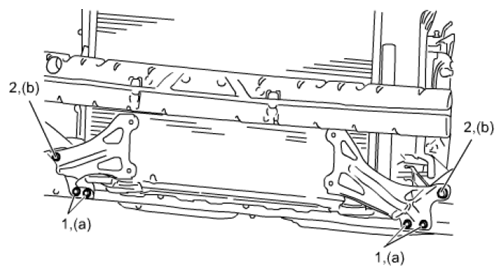

  Fig 1: Identifying CVT Fluid Cooler Bracket Bolt No. 2 And No. 1

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten CVT fluid cooler bolts (1) to specified torque.

  Tightening torque

  CVT fluid cooler bolt (a): 13 N.m (1.3 kg-m, 9.5 lbf-ft)

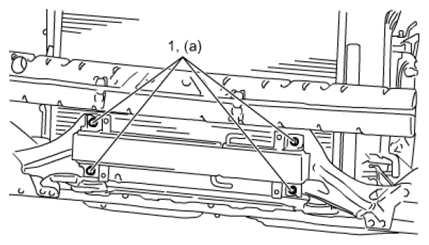

  Fig 2: Identifying CVT Fluid Cooler Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• Clamp new clamps securely.
• Refill CVT fluid, see CVT FLUID CHANGE .
• Check CVT fluid level, see CVT FLUID CHECK .
• After installation, check CVT fluid leakage each connection.
