HVAC Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from A/C system referring to "RECOVERY " in Operation Procedure for Refrigerant Charge .
Drain engine coolant.
Remove hose bands (1), and then disconnect heater hoses (2) from HVAC unit.
Remove liquid pipe bolt (3), and then disconnect suction hose (4) and liquid pipe (5) from expansion valve (6).

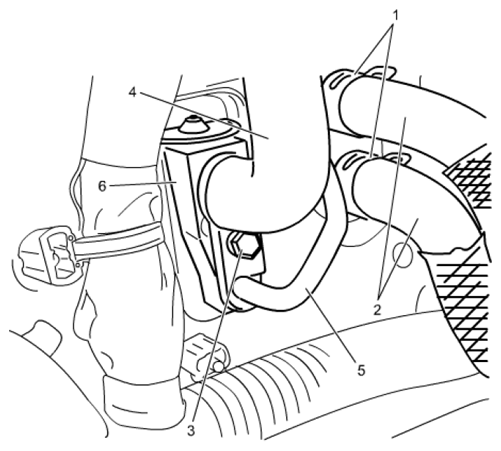

Fig 1: Identifying Hose Bands, Heater Hoses, Liquid Pipe Bolt, Suction Hose, Liquid Pipe, Expansion Valve And HVAC Unit
Courtesy of SUZUKI OF AMERICA CORP.
Remove right side cowl top garnish, see FRONT FENDER COVER/COWL TOP GARNISH REMOVAL AND INSTALLATION .
Remove nuts (1).

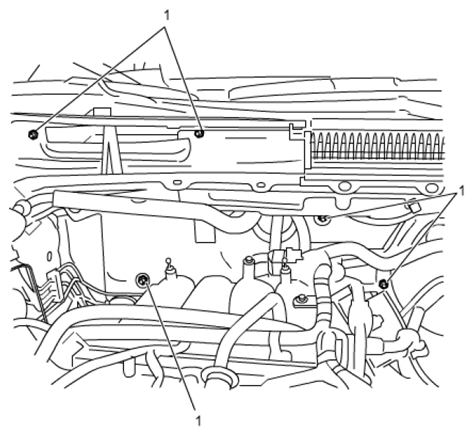

Fig 2: Identifying Cowl Top Garnish Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Remove center console box, see CENTER CONSOLE BOX REMOVAL AND INSTALLATION .
Remove instrument panel with steering support member, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
Remove nut (1) and rear duct (2), and then remove HVAC unit (3).

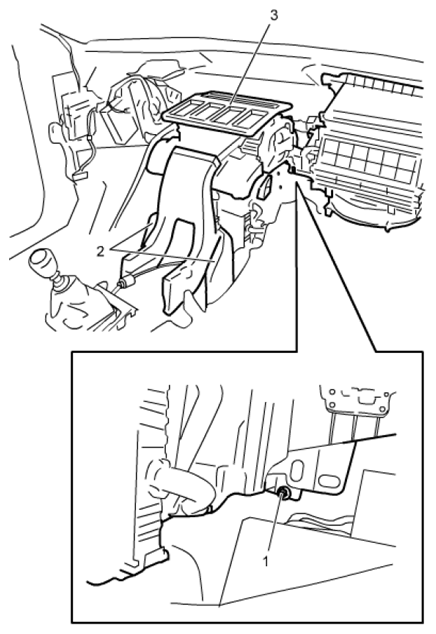

Fig 3: Identifying Nut, Rear Duct And HVAC Unit

Courtesy of SUZUKI OF AMERICA CORP.
