Center Console Box Removal and Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install parts referring to figure.

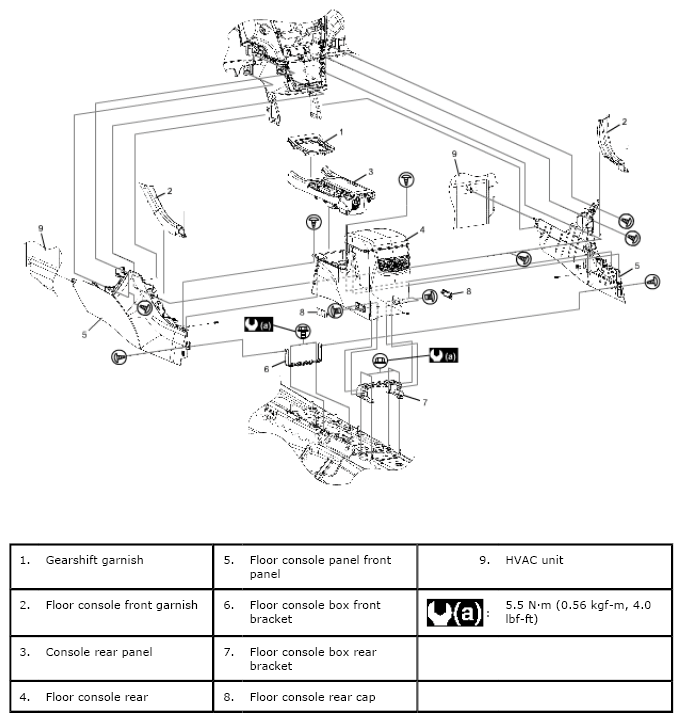

Fig 1: Identifying Center Console Box Components
G06530187Courtesy of SUZUKI OF AMERICA CORP.
